Vision | SC 48 i25 Carbon Wheelset

Deep-section speed built for both road and gravel.

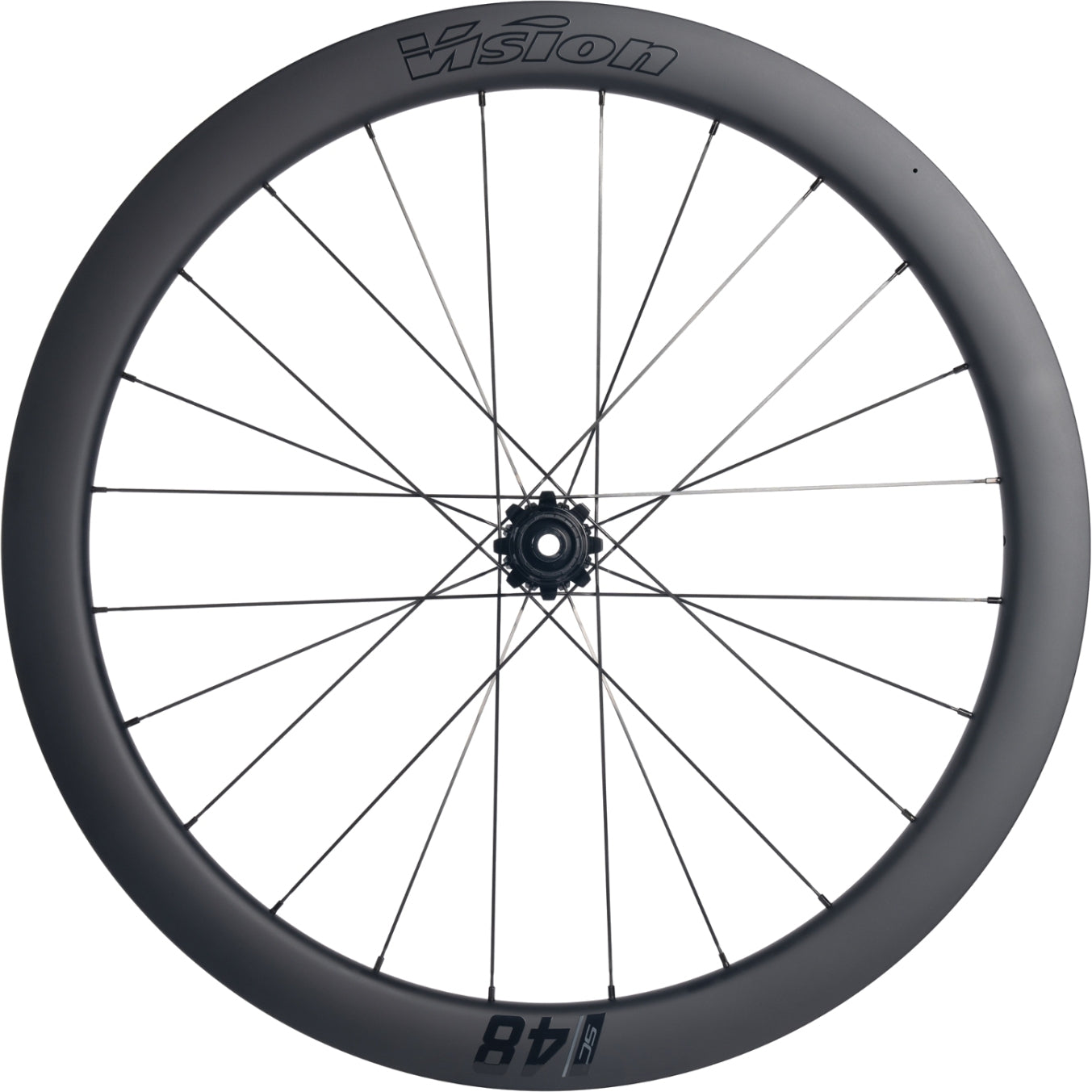

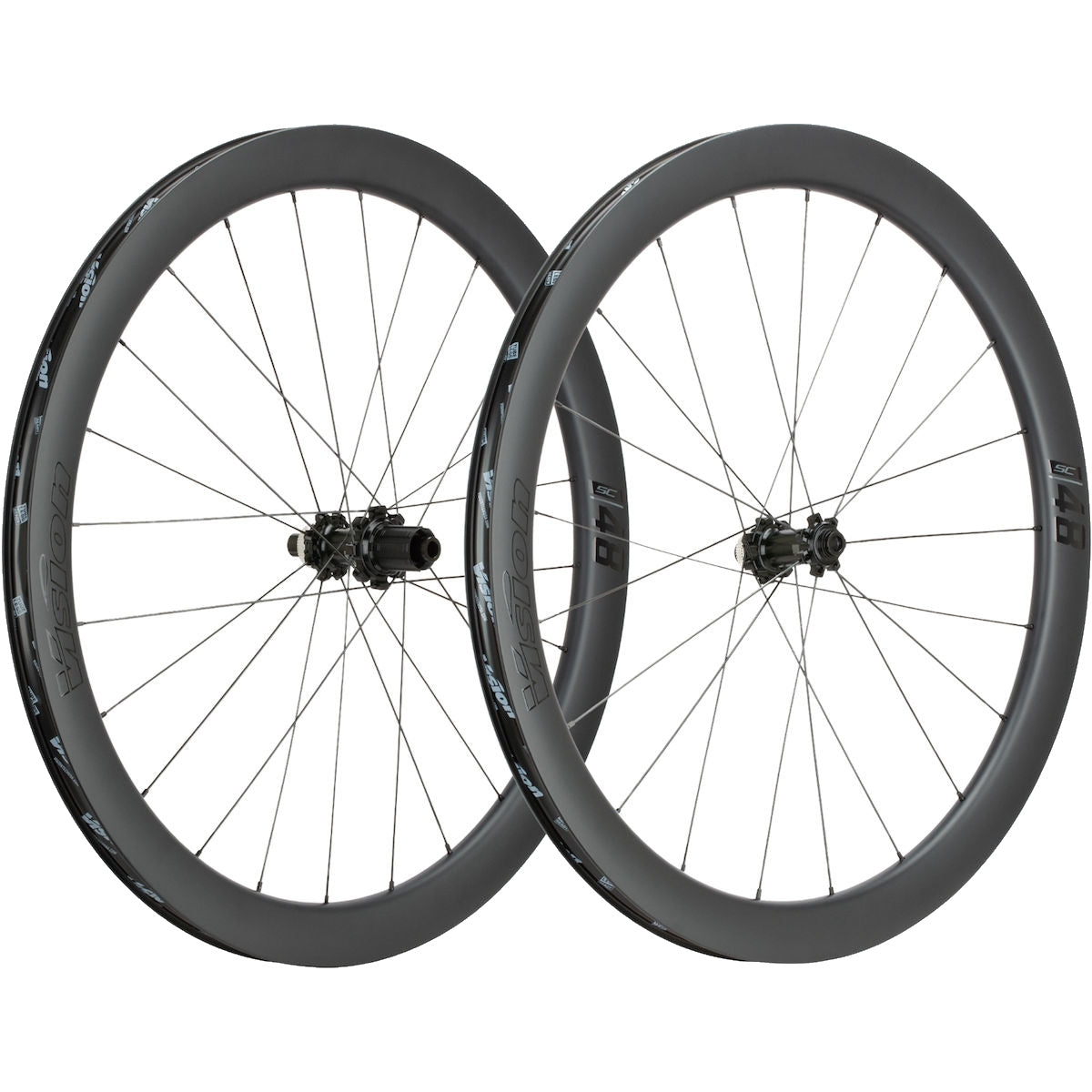

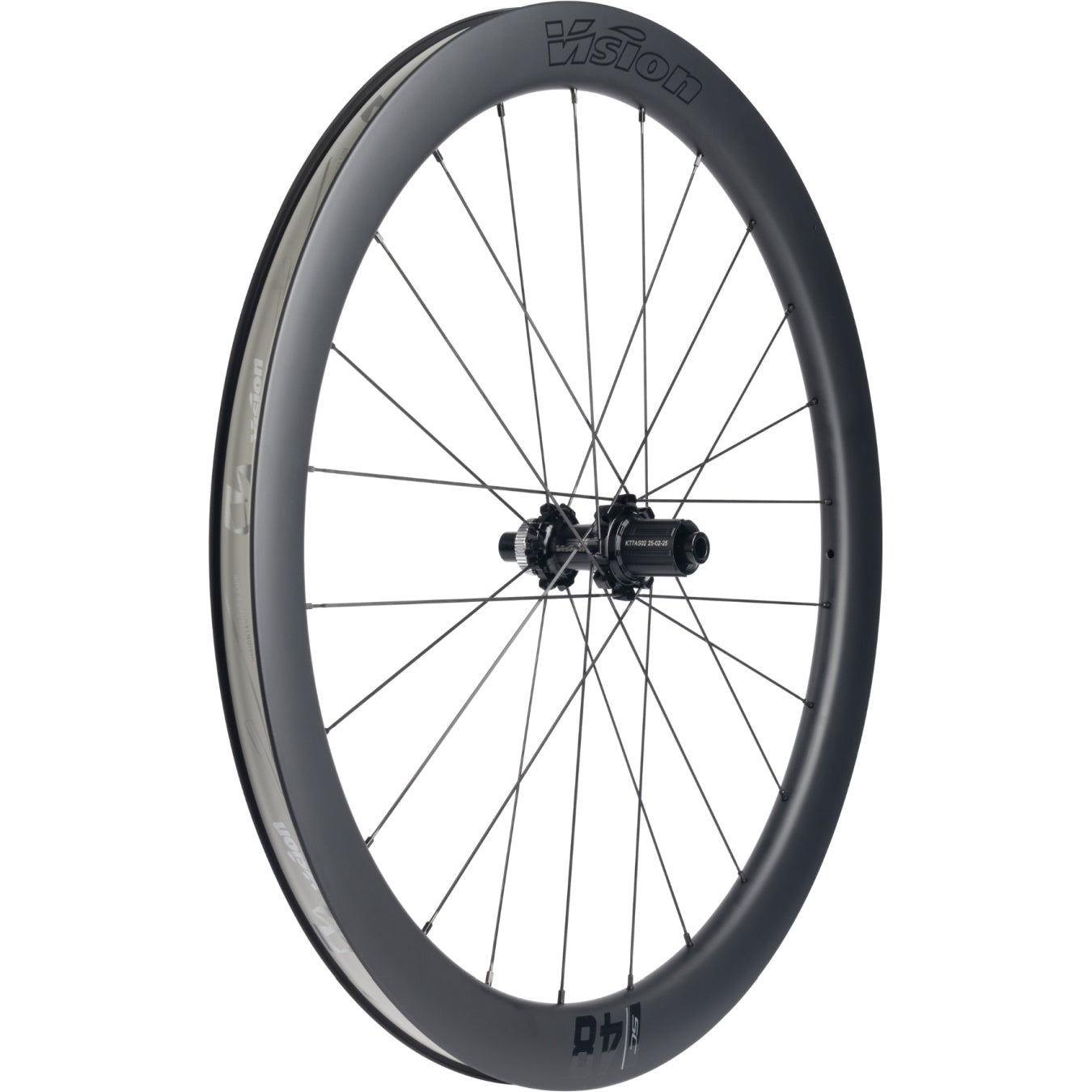

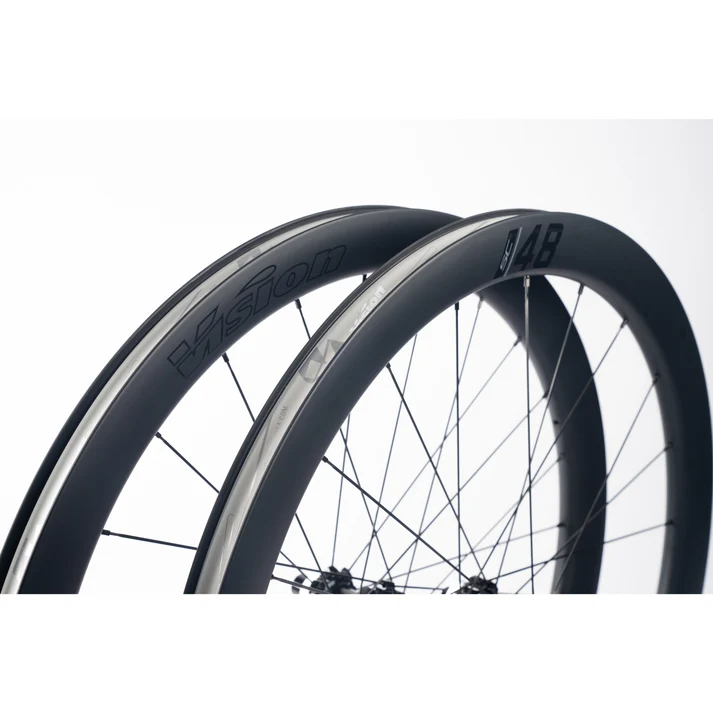

The Vision SC 48 i25 is a carbon disc-brake wheelset designed for riders seeking aerodynamic performance, wide-tire support, and dependable versatility across road and gravel.

Its 48 mm carbon rim combines an aerodynamic profile with a 25 mm internal hooked channel optimized for wider tires. Twenty-four aero-bladed spokes connect the rims to Vision V-200 straight-pull hubs, while six sealed cartridge bearings and an updated rear pawl system provide reliable, maintenance-friendly performance.

Important Compatibility Note

This wheelset is designed exclusively for disc brakes with Center Lock rotors and uses 12 x 100 mm front and 12 x 142 mm rear thru-axles.

Choose XDr for compatible SRAM XDR cassettes or MS12 for Shimano Micro Spline 12-speed cassettes. Neither variant is compatible with Shimano HG road cassettes without changing the freehub body. Feel free to message us, and we’ll help you confirm compatibility before ordering.

Key Features

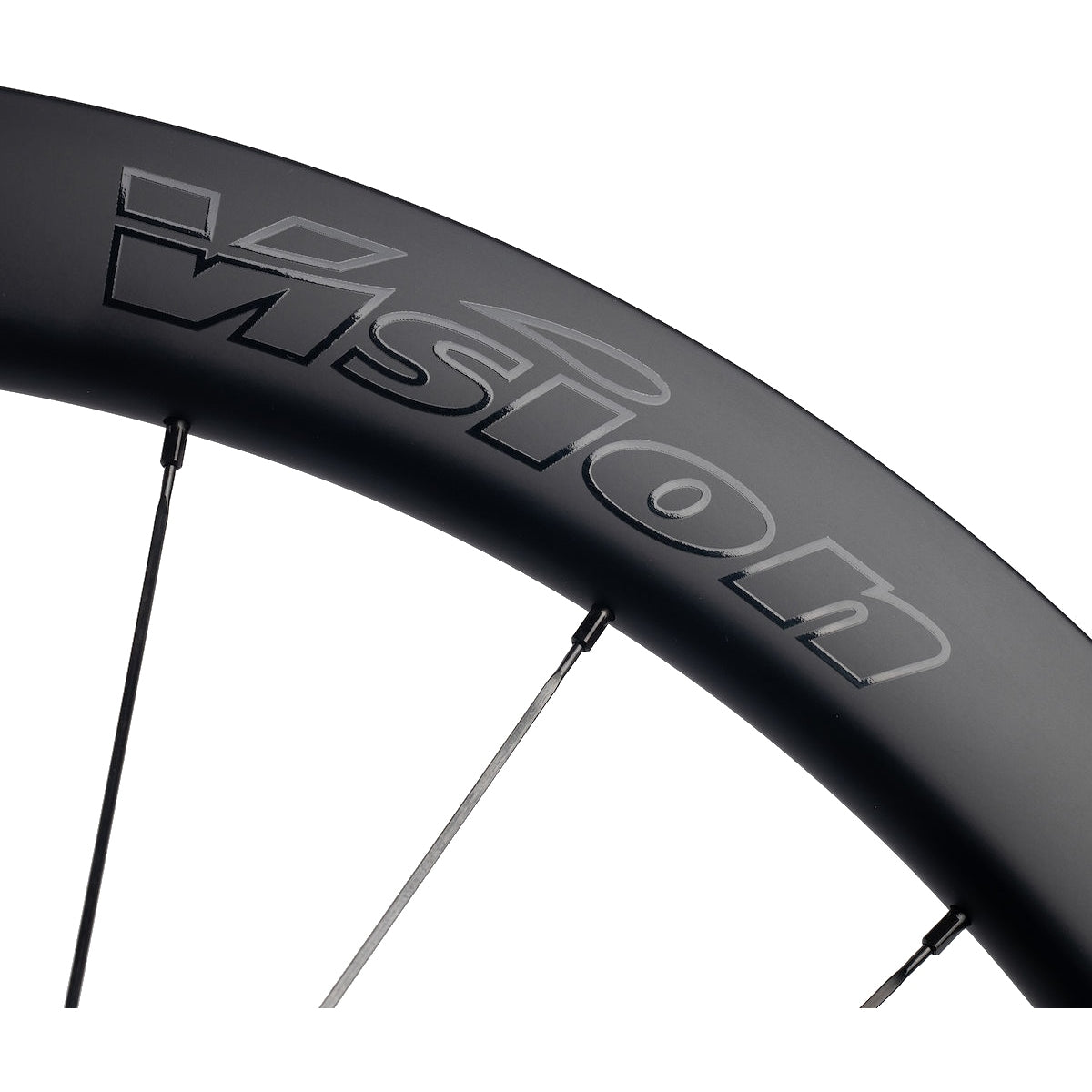

• Full Carbon Rims
Carbon construction delivers a responsive ride with a deep aerodynamic profile.

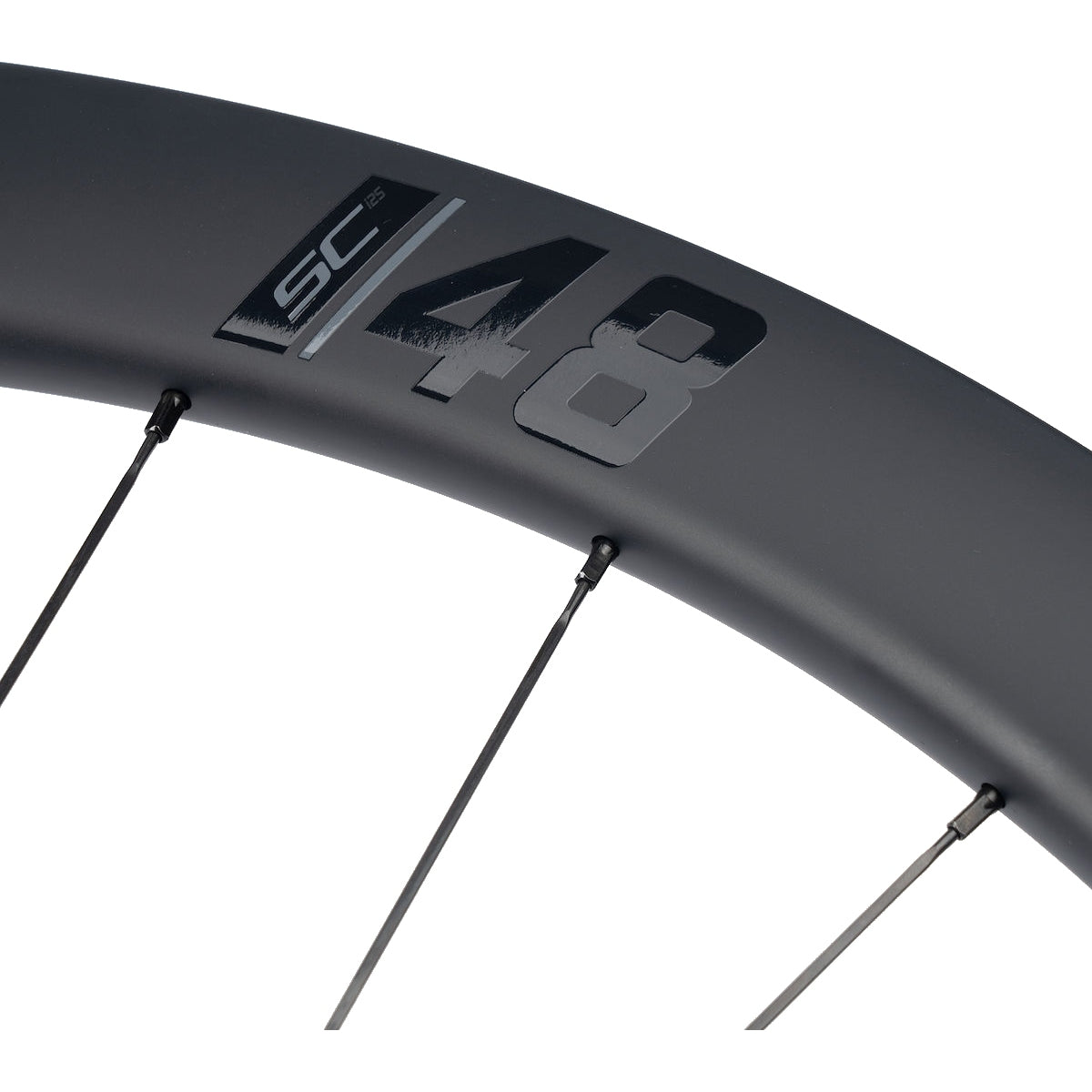

• 48 mm Rim Depth
Balances aerodynamic efficiency with versatility for road and gravel riding.

• 25 mm Hooked Internal Width
Supports wider tires while retaining a hooked bead channel for broad tire compatibility.

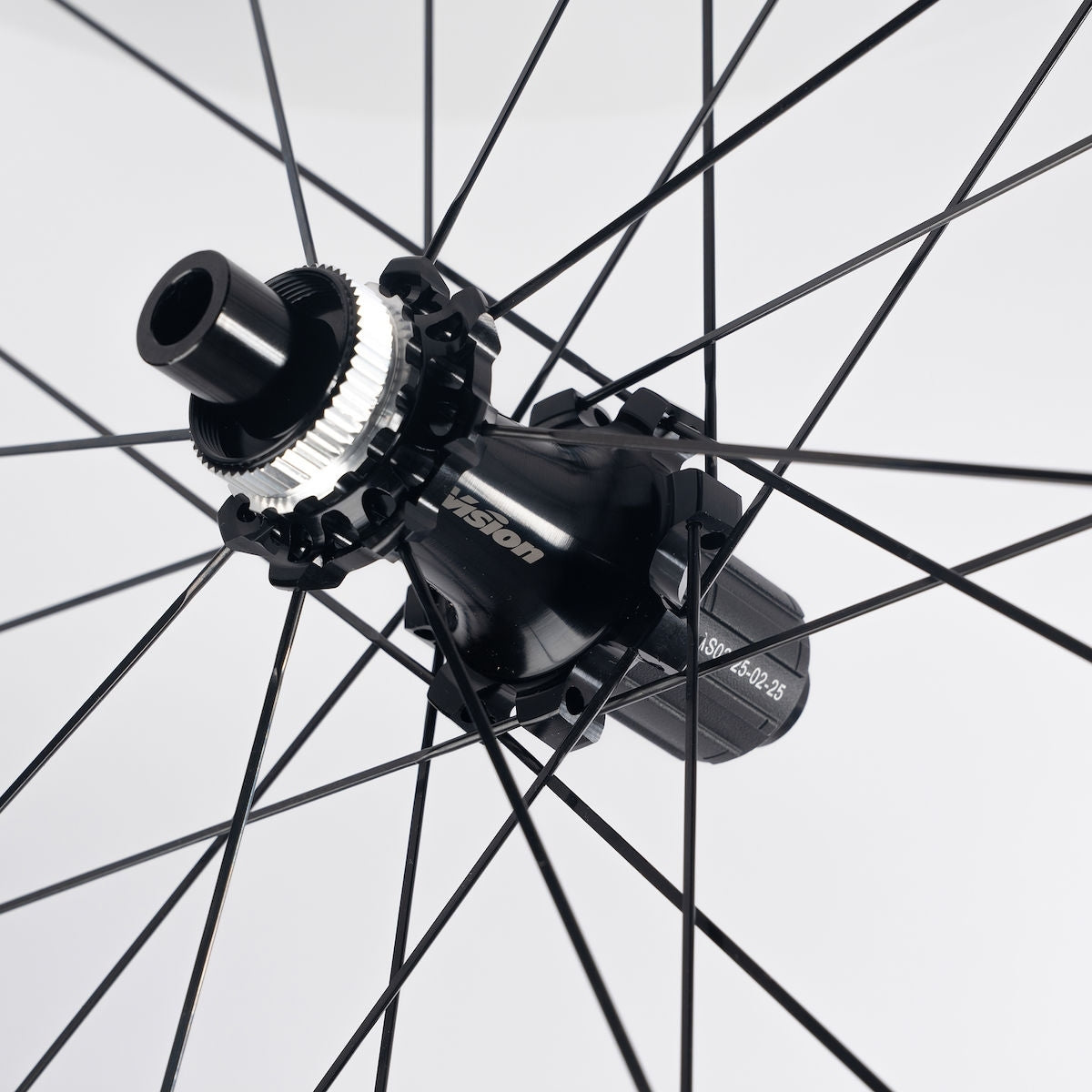

• Vision V-200 Hubs
Straight-pull hubs use an updated rear pawl system and press-fit end caps for improved reliability and easier maintenance.

• Aero-Bladed Spokes
Twenty-four double-butted aero spokes use a 2:1 cross pattern for balanced stiffness and aerodynamic performance.

• Hand-Built Construction
Each wheelset is assembled by hand for controlled spoke tension and consistent build quality.

Technical Specifications

• Category
Carbon Disc Wheelset

• Discipline
Road/Gravel

• Rim Material
Carbon

• Rim Depth
48 mm

• Internal Rim Width
25 mm

• Bead Type
Hooked

• Tire Compatibility
Tubeless Ready

• Compatible Tire Width
29 to 71 mm

• Brake Compatibility
Disc Brake Only

• Rotor Mount
Center Lock

• Front Axle
12 x 100 mm Thru-Axle

• Rear Axle
12 x 142 mm Thru-Axle

• Hubs
Vision V-200 Straight-Pull

• Spokes
24 Aero-Bladed Double-Butted Spokes

• Spoke Pattern
2:1 Cross Pattern

• Bearings
Six Sealed Cartridge Bearings, Two Front and Four Rear

• Freehub Options
SRAM XDr or Shimano Micro Spline 12-Speed

• Color
Black

• Weight
1,594 g per wheelset

• Included Components
Front and rear wheels with the selected freehub body

• Excluded Components
Tires, cassette, brake rotors, and thru-axles

One fast, wide, and adaptable carbon wheelset for wherever the pavement ends.
