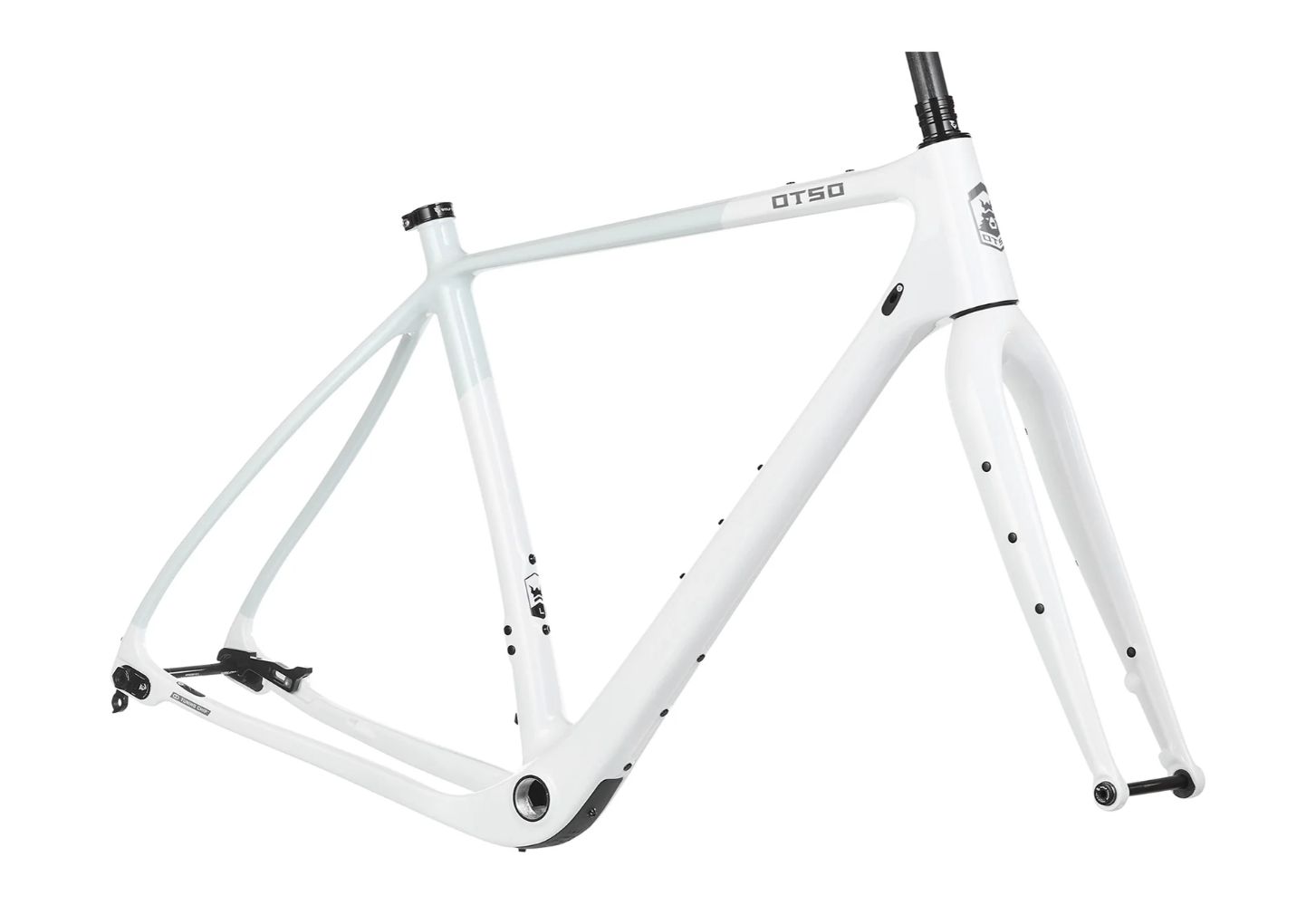

Otso Cycles | Waheela C Carbon Gravel Frameset

Three bikes in one. One frame for almost anything.

The Otso Waheela C is a carbon gravel frameset built to race fast, explore farther, and adapt to whatever terrain lies ahead.

Proven at demanding gravel events and long-distance bikepacking races, the Waheela C combines massive tire clearance, adjustable geometry, and a surprisingly compliant EPS-molded carbon frame. Its versatile platform can be configured for fast gravel racing, rough backcountry routes, or fully loaded endurance adventures without losing its responsive character.

Key Features

• Massive Tire Clearance
Fits 700C, 650B, and most 29 x 2.1-inch tires for everything from fast gravel to rough and technical terrain.

• Adjustable Tuning Chip Geometry
Otso’s patented Tuning Chip adjusts the wheelbase by up to 20 mm and the bottom bracket height by 4 mm for quicker handling or greater stability.

• Compliant Carbon Construction
EPS-molded carbon and bowed seat stays help absorb vibration and trail chatter while preserving efficient power transfer.

• Race and Adventure Versatility
Compatible with rigid or short-travel suspension forks, internal dropper posts, 1x or 2x drivetrains, and cargo mounting systems.

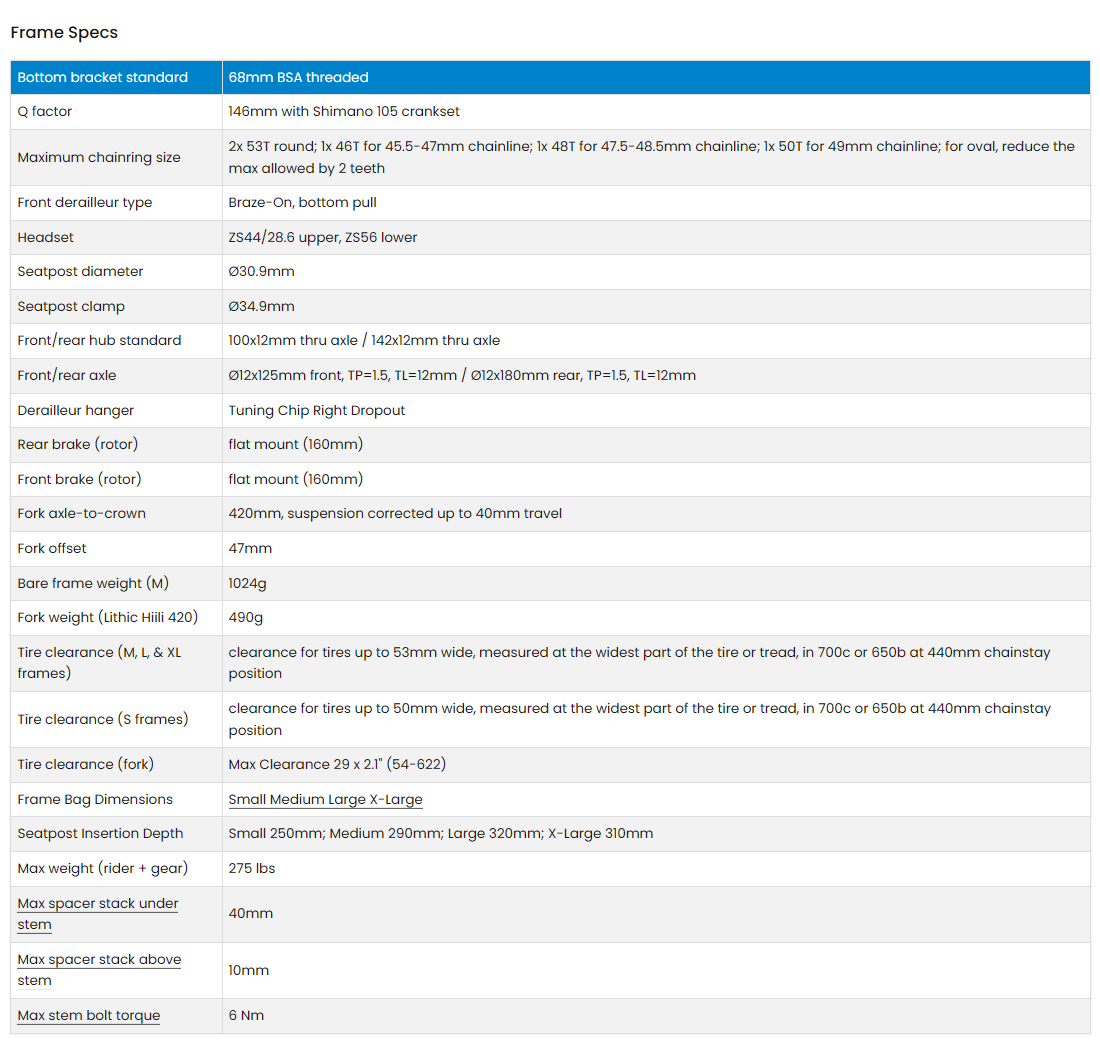

Technical Specifications

• Category
Carbon Gravel Frameset

• Discipline
Gravel

• Construction / Material
EPS-Molded Carbon Fiber

• Wheel Compatibility
700C / 650B / 29 Inches

• Maximum Tire Clearance
Up to 54 mm / Most 29 x 2.1-Inch Tires

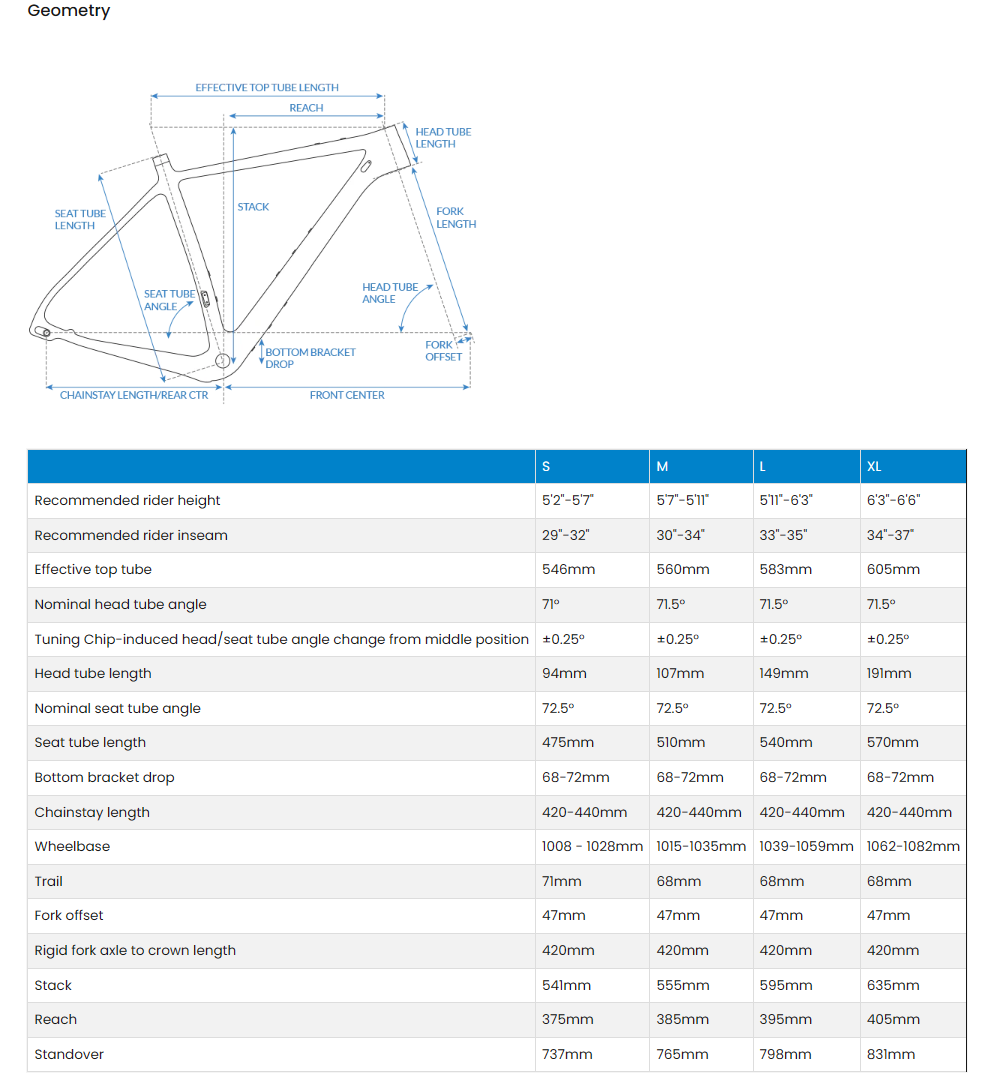

• Geometry Adjustment
Otso Tuning Chip / 420 to 440 mm Chainstay Length

• Fork
Lithic Hiili Carbon Fork

• Fork Length
420 mm Axle-to-Crown

• Suspension Fork Compatibility
Up to 40 mm Travel

• Fork Offset
47 mm

• Drivetrain Compatibility
1x or 2x / Mechanical or Electronic

• Bottom Bracket
68 mm BSA Threaded

• Headset
ZS44/28.6 Upper / ZS56 Lower

• Seatpost Diameter
30.9 mm

• Seatpost Clamp Diameter
34.9 mm

• Dropper Post Compatibility
Yes, Internal Routing

• Hub Compatibility
12 x 100 mm Front / 12 x 142 mm Rear Thru-Axle

• Brake Compatibility
Flat-Mount Disc Brake / Maximum 160 mm Rotors

• Frame Weight
Approximately 1,024 g, Medium Bare Frame

• Fork Weight
Approximately 490 g

• Maximum Rider and Gear Weight
275 lb / Approximately 125 kg

• Color Options

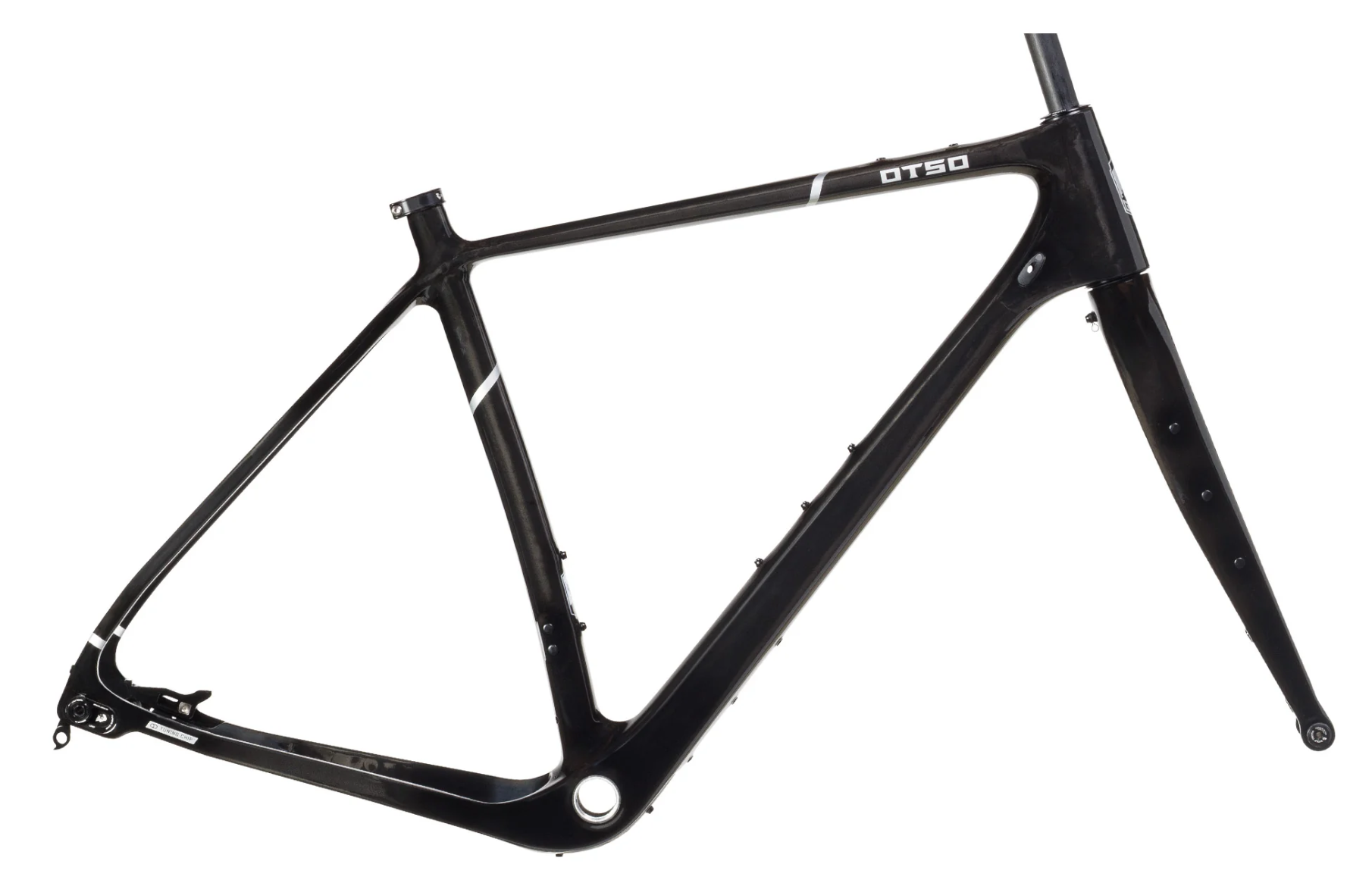

Limited Raw Carbon (#1C1C1C) / Silver Gloss (#C0C0C0), Gloss White (#FFFFFF) / Cool Gray (#8C92AC)

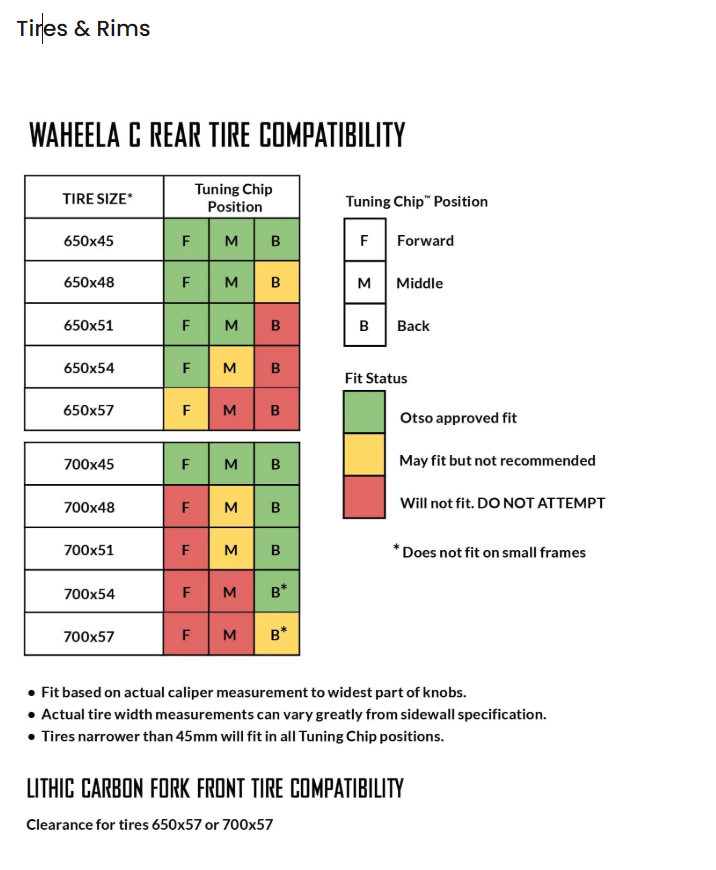

Run 700C or 650B tires up to 54 mm wide, then tune the wheelbase for race-day agility or all-day stability.
