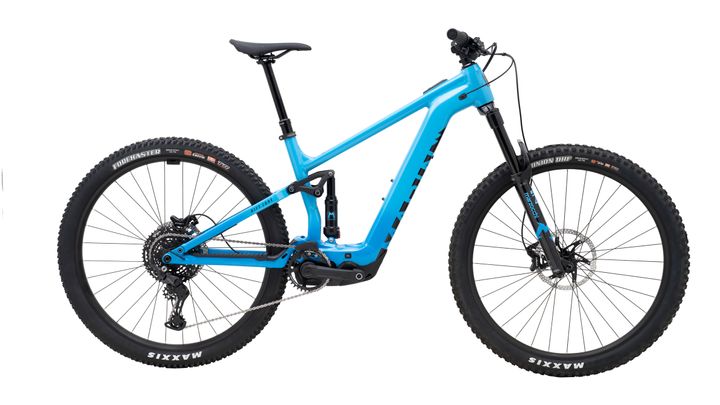

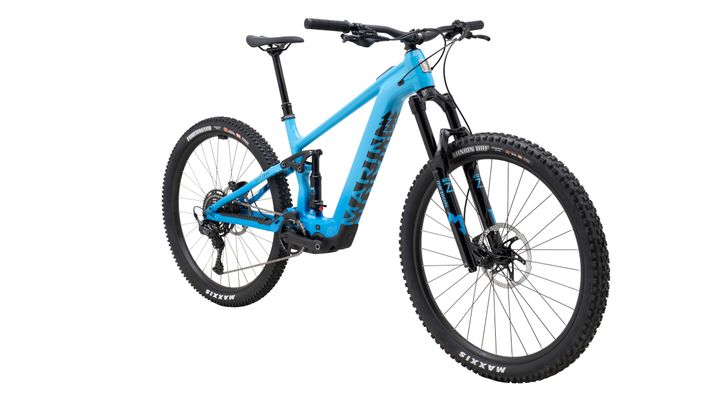

Marin Bikes | 2025 Rift Zone EL 1

📏 Size Guide

Light assist. Full trail fun.

The Marin Bikes Rift Zone EL 1 is a lightweight trail eMTB built around the idea that electric assistance should enhance the ride—not overwhelm it. Part of Marin’s new “Electric Light” platform, the Rift Zone EL takes the proven Rift Zone trail chassis and pairs it with Bosch’s compact Performance Line SX system for a ride that feels playful, responsive, and unmistakably trail-first.

By combining a lightweight Bosch SX motor and internal CompactTube battery, the Rift Zone EL 1 delivers smooth, natural power that blends seamlessly with your pedaling input. It’s designed for riders who want the benefits of electric assist without the weight, bulk, or overpowered feel of traditional full-power eMTBs—making it ideal for technical trails, flow lines, and long rides where handling matters as much as range.

Key Features

• Bosch Performance Line SX Drive System
Lightweight 600W motor delivering 55Nm of torque for smooth, natural-feeling assist on climbs and rolling terrain.

• Lightweight Trail-Focused Frame
Series 4 Alloy frame with 140mm MultiTrac rear suspension, integrated battery, and modern trail geometry.

• Marzocchi Bomber Suspension Package
150mm Marzocchi Bomber Z1 fork paired with a custom-tuned Marzocchi Bomber rear shock for confident trail control.

• Durable Shimano CUES Drivetrain
10-speed Shimano CUES system provides smooth shifting and reliability under eMTB loads.

• Powerful 4-Piston Braking
TRP Slate EVO 4-piston hydraulic disc brakes with 203mm rotors deliver consistent stopping power on steep descents.

• Modern Trail Wheel & Tire Setup
29” wheels with wide rims and Maxxis Minion DHF / Forekaster tire combo offer grip, stability, and tubeless-ready performance.

Technical Specifications

• App: Bosch eBike Flow App
• Range: 15–55 miles / 25–90km
• Display: Bosch BRC3100 Systems Controller
• Switch: Bosch BRC3300 Bluetooth Remote (22.2mm Clamp)
• Battery: Bosch 400Wh Internal (Optional PowerMore 250Wh external battery using PowerMore 150mm cable EB12.120.036)
• Motor: Bosch Performance Line SX, 600W, 55Nm

• Frame: Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
• Front Suspension: Marzocchi Bomber Z1, 150mm Travel, 29, 110×15 Kabolt Thru Axle, 44mm Offset
• Rear Suspension: Marzocchi Bomber Air Inline, Custom Tune, 210×55mm, 25×M8 Upper & Lower Mount

• Rim: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
• Hub Rear: Shimano FH-TC500, 148×12 Thru Axle, Microspline, 32H, Centerlock
• Hub Front: Shimano, 110×10 Thru Axle, 32H, Centerlock
• Spokes: 14g Black Stainless Steel

• Tires:
Front – Maxxis Minion DHF, 29×2.5" MAXXGRIP, Tubeless Ready, EXO+
Rear – Maxxis Forekaster, 29×2.4", Tubeless Ready, MAXX TERRA, EXO+

• Chainguide: ethirteen eSpec Chainguide
• Derailleur Rear: Shimano CUES RD-U6000 GS, 10-Speed
• Shift Lever: Shimano CUES SL-U6000-10R, 10-Speed
• Crankset: ethirteen espec Plus, 160mm Length, 34T
• Chain: Shimano LG500
• Cassette: Shimano CS-LG300-10, 11–48T

• Brakes Front: TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
• Brakes Rear: TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
• Brake Levers: TRP Slate EVO, I-Spec EV Compatible

• Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
• Stem: Marin 3D Forged Alloy, 35mm
• Grips: Marin Grizzly Lock-On
• Headset: FSA Custom Headset, Adjustable HTA Design

• Seatpost: TranzX, YSI34 QL, Plastic 1× Remote, 34.9mm (S 150mm / M–L 170mm / XL 200mm Travel)
• Saddle: Marin Speed Concept
• Pedals: Marin MTB Plastic

Designed for trail riders who want a lighter, more agile eMTB with natural power delivery and true trail-bike handling.

Due to the nature of the product, this item may take longer to ship as it contains batteries.
