Marin Bikes | 2026 Nicasio 3

Premium steel gravel performance with carbon wheels and adventure-ready capability.

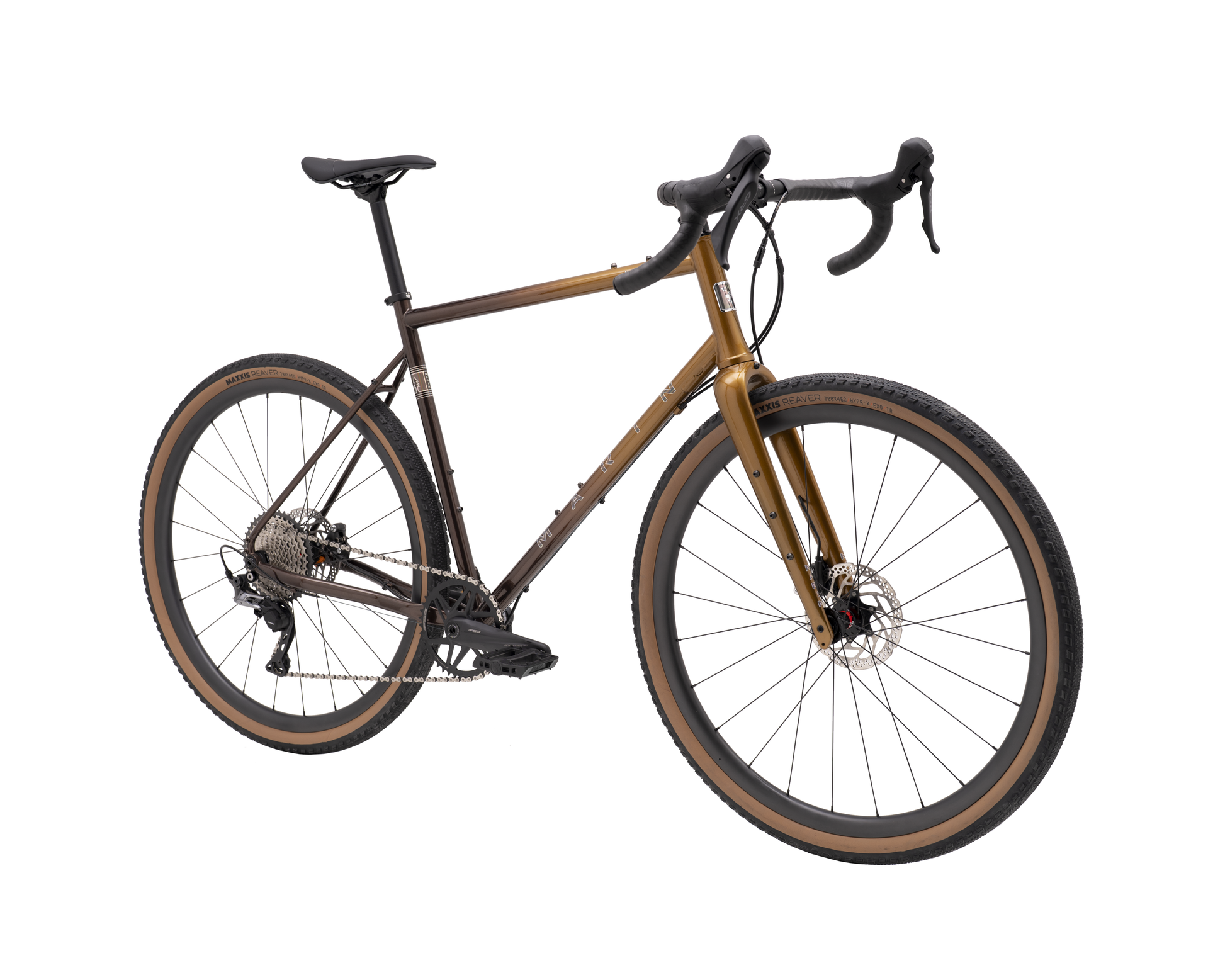

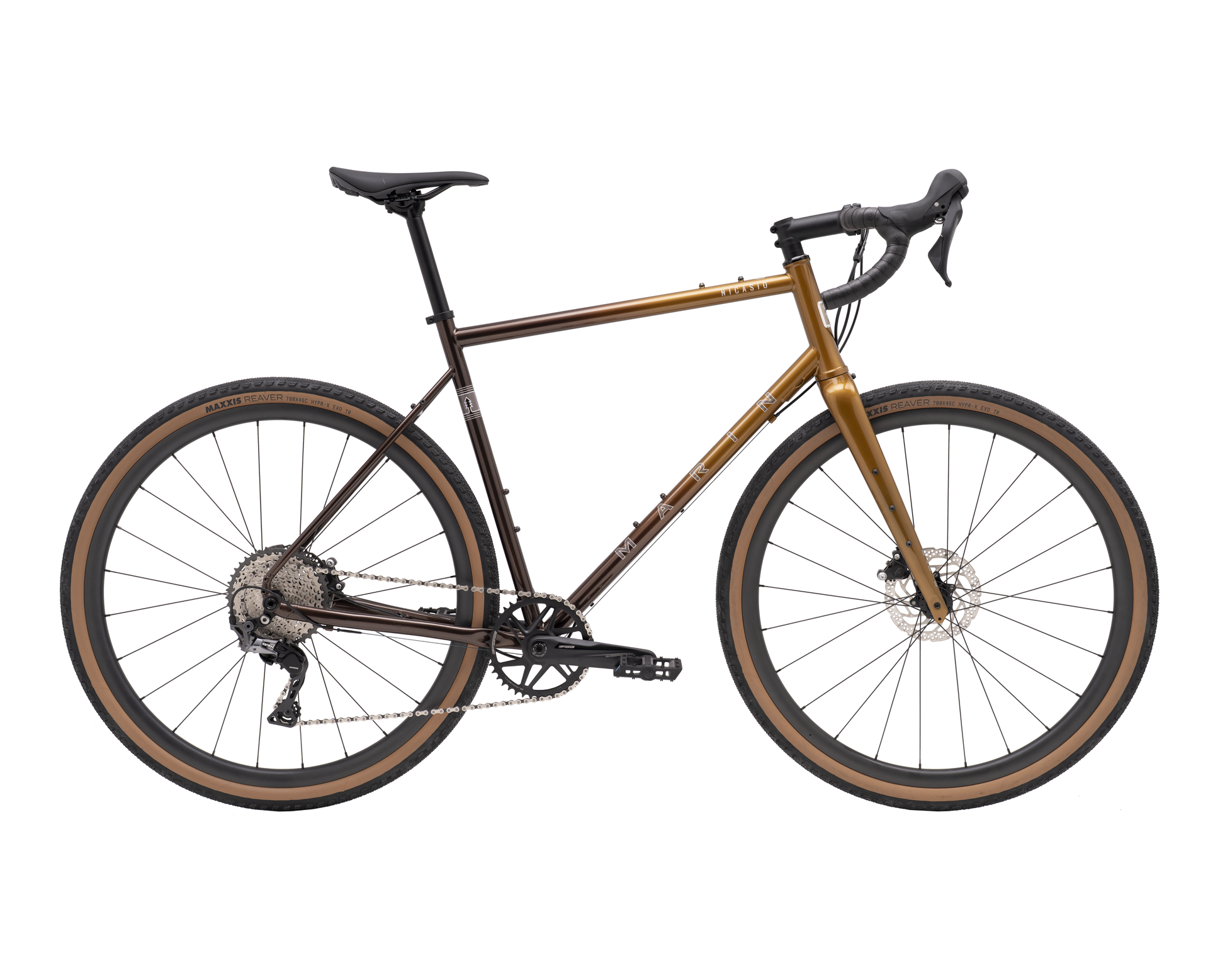

The Marin Nicasio 3 is a high-performance steel gravel bike designed for riders who want the smooth ride quality of chromoly steel combined with modern gravel performance, lightweight carbon wheels, and premium Shimano GRX components.

Built around Marin’s all-new SteezyR double-butted chromoly frame platform, the 2026 Nicasio 3 combines compliant steel ride feel, aggressive gravel capability, carbon wheel efficiency, and Shimano GRX hydraulic performance into a versatile gravel bike equally capable on pavement, fast gravel roads, endurance rides, and mixed-terrain adventures. Unlike traditional steel gravel bikes that focus purely on comfort, the Nicasio 3 blends classic ride feel with modern lightweight performance.

Key Features

• SteezyR Double-Butted Chromoly Frame
Premium steel frame construction delivers smooth ride quality, excellent vibration damping, and confident long-distance comfort.

• Carbon Gravel Fork and Carbon Wheelset
Full carbon fork and Novatec carbon wheels improve responsiveness, reduce weight, and sharpen handling across mixed terrain.

• Shimano GRX 1x11-Speed Gravel Drivetrain
Gravel-focused Shimano GRX drivetrain provides reliable shifting performance with wide-range gearing for climbing and rough terrain riding.

• Shimano GRX Hydraulic Disc Brakes
Hydraulic braking system delivers powerful and consistent stopping performance in varying terrain and weather conditions.

• Tubeless-Ready 45mm Gravel Tires
Wide-volume Maxxis Reaver tires improve traction, efficiency, and control across gravel roads and loose surfaces.

Technical Specifications

• Category
Steel Gravel Bike

• Discipline
Gravel, Road

• Frame
All-New SteezyR Double Butted CrMo, Beyond Road Geometry, Tapered Headtube with Integrated Headset, Investment Cast Dropouts, Thru-Axle, Disc Brake, Fender and Rack Mounts, Hidden Kickstand Mount

• Fork
Marin Full Carbon Fork with Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

• Drivetrain
Shimano GRX 1x11-Speed

• Rear Derailleur
Shimano GRX RX812 11-Speed

• Shifters
Shimano GRX RX600 1x11-Speed

• Crankset
FSA Gossamer Pro MegaExo, 42T

• Bottom Bracket
FSA MegaExo BSA Threaded

• Cassette
Shimano CS-M8000, 11-42T

• Chain
KMC X11

• Brakes
Shimano GRX Hydraulic Disc Brakes, 160mm Rotors

• Brake Levers
Shimano Integrated Hydraulic STI Levers

• Wheelset
Novatec G24 Carbon, 24mm Internal Width, 24 Hole, Tubeless Compatible

• Tires
Maxxis Reaver 700x45c, EXO Casing, Folding Bead, Tubeless Compatible

• Handlebar
Marin Butted Alloy Compact Flared Drop Bar, 16° Flare

• Stem
Marin 3D Forged Alloy

• Seatpost
Marin Alloy, 27.2mm

• Saddle
Marin Beyond Road Concept

• Headset
FSA No.42/ACB

• Extras
Bolt-On Front and Rear Thru-Axles

• Color Options
Brown (#6B4A32)

Geometry

Built for riders seeking premium steel ride quality with lightweight carbon performance, modern gravel capability, and long-distance mixed terrain versatility.
