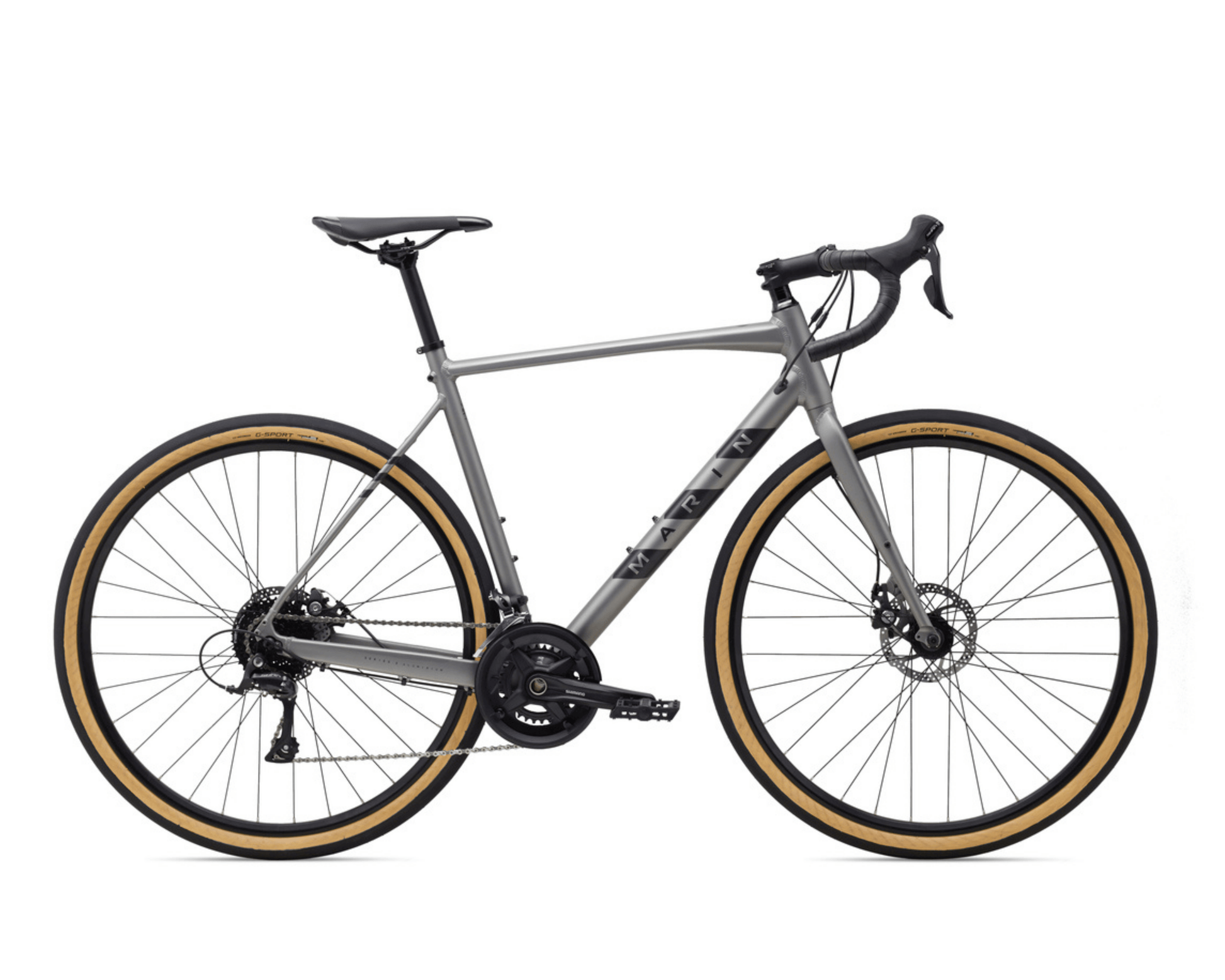

Marin Bikes | 2023 Lombard 1

Built for fast commuting, urban efficiency, and everyday versatility.

The Marin Lombard 1 is an urban commute bike designed for riders who want the speed and efficiency of a drop-bar road bike combined with the practicality and durability needed for daily city riding.

Built around Marin’s Series 2 Lombard aluminum platform, the 2023 Lombard 1 combines stable urban geometry, wide puncture-protected tires, Shimano Sora shifting, and commuter-ready mounting points into a dependable all-weather city machine. Unlike aggressive road race bikes, the Lombard prioritizes comfort, durability, and practicality for commuting, fitness riding, and mixed urban terrain.

Key Features

• Urban-Focused Aluminum Frame
Series 2 aluminum frame delivers stable handling, responsive acceleration, and practical commuter versatility.

• Wide Tire Urban Platform
700x40c tires with puncture protection improve comfort and confidence across rough roads and city streets.

• Shimano Sora 2x9-Speed Drivetrain
Reliable Shimano Sora shifting provides practical gearing for commuting, climbing, and fast urban riding.

• Mechanical Disc Brake System
Tektro mechanical disc brakes deliver dependable braking performance in wet and unpredictable city conditions.

• Commuter-Ready Mounting Options
Integrated rack and mudguard mounts make the Lombard ideal for commuting, utility riding, and long-distance urban use.

Technical Specifications

• Category
Urban Commute Bike

• Discipline
Urban / Commuter / Fitness

• Frame
Series 2 Lombard, 6061 Aluminum, Internal Cable Routing, Disc-Specific Forged Dropouts, Mudguard and Rack Mounts

• Fork
6061 Aluminum Straight-Blade Fork, Post-Mount Disc

• Tire Clearance
45c

• Drivetrain
Shimano Sora 2x9-Speed

• Rear Derailleur
Shimano Sora 9-Speed

• Front Derailleur
Shimano Sora

• Shifters
Shimano Sora 2x9-Speed STI

• Crankset
Marin 3D Forged Alloy with 48/32T Chainrings and Ring Guard

• Bottom Bracket
Sealed Cartridge Bearings, Square Taper

• Cassette
Shimano HG-200, 11-34T

• Chain
KMC X9

• Brakes
Tektro Road Mechanical Disc Brakes

• Brake Levers
Shimano Sora STI

• Rotors
160mm Rotors

• Wheelset
Marin Aluminum Double Wall Rims, 21mm Inner Width

• Front Hub
Forged Aluminum Alloy, Disc, 32H

• Rear Hub
Forged Aluminum Alloy, Disc, 32H

• Tires
Vee Tire Co. G-Sport 700x40c with Puncture Protection

• Handlebar
Marin Butted Alloy Compact Handlebar with 16° Flare

• Stem
Marin 3D Forged Alloy

• Seatpost
Marin Alloy, 27.2mm

• Saddle
Marin Beyond Road Concept Saddle

• Bar Tape
Marin Microfiber Tape

• Headset
FSA No.8B

• Color Options
Satin Charcoal / Reflective Black (#3B3B3B)

Geometry

Built for riders seeking a fast and practical urban bike with drop-bar efficiency, commuter versatility, and dependable everyday performance.
