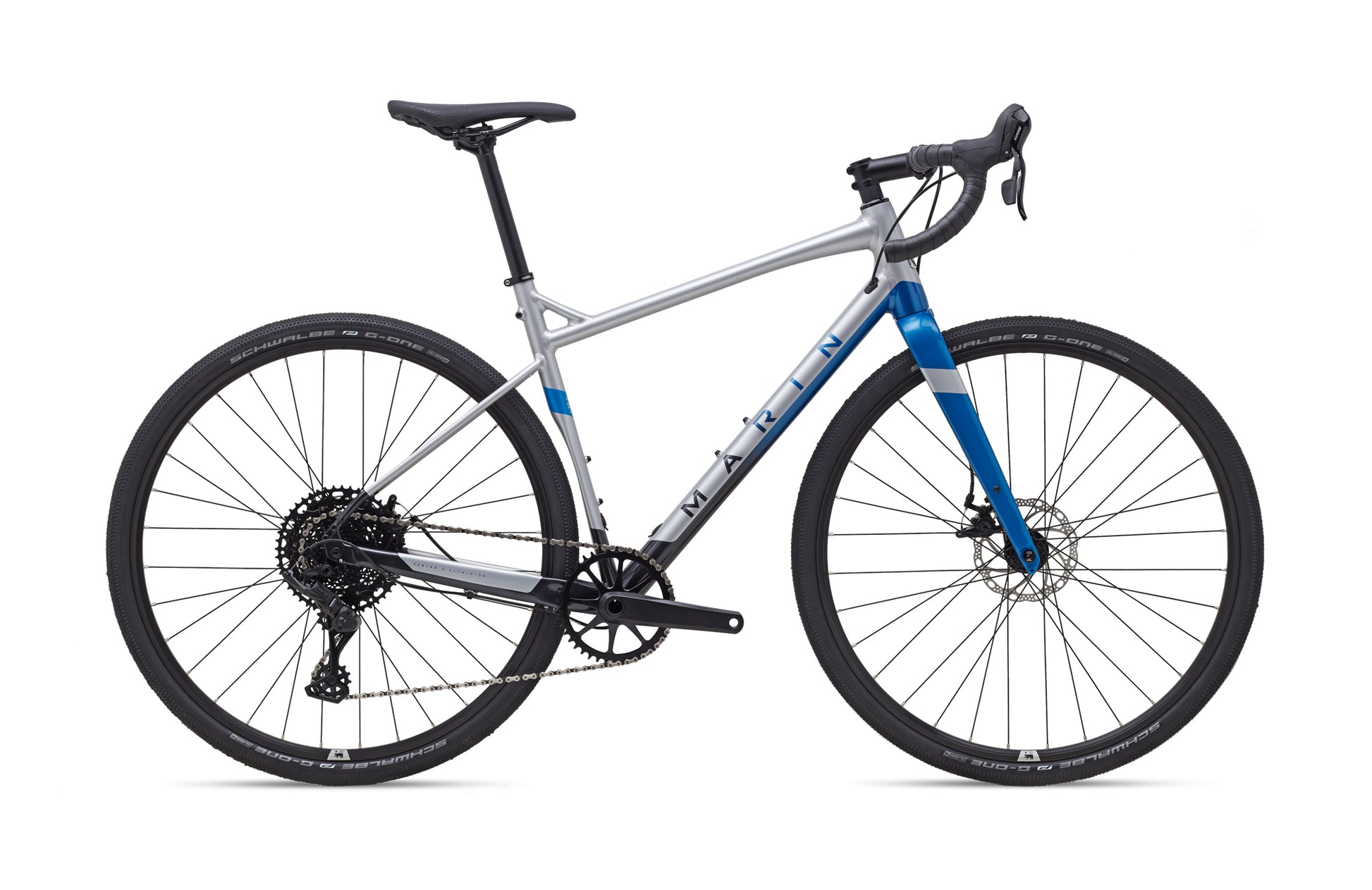

Marin Bikes | 2022 Gestalt X10

Built for riders who want true gravel capability without sacrificing everyday versatility.

The Marin Gestalt X10 is a gravel bike designed for riders seeking confidence, comfort, and wide-range capability across pavement, gravel roads, bikepacking routes, and rough mixed terrain.

Built around Marin’s Series 3 Beyond Road aluminum platform, the 2022 Gestalt X10 combines progressive gravel geometry, generous tire clearance, a full carbon fork, and a wide-range MicroSHIFT Advent X drivetrain into a capable adventure machine ready for long-distance rides and off-road exploration. Unlike traditional road-focused gravel bikes, the Gestalt X10 emphasizes stability, traction, and terrain versatility for real-world gravel riding.

Key Features

• Series 3 Beyond Road Aluminum Frame
Advanced aluminum frame construction with modern gravel geometry delivers stable handling and long-distance ride comfort.

• Full Carbon Gravel Fork
Lightweight carbon fork improves vibration damping and front-end comfort while supporting adventure-ready mounts.

• MicroSHIFT Advent X 1x10-Speed Drivetrain
Wide-range gearing paired with a simple 1x setup delivers dependable shifting performance for gravel riding and steep climbs.

• 50c Tire Clearance
Generous tire clearance allows riders to run wider tires for improved traction, comfort, and mixed-terrain capability.

• Dual-Piston Mechanical Disc Brakes
Tektro dual-piston mechanical disc brakes provide improved braking consistency and easier maintenance.

Technical Specifications

• Category
Gravel Bike

• Discipline
Gravel / Adventure

• Frame
Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

• Fork
Marin Full Carbon Fork with Tapered Steerer, 12mm Thru-Axle, Flat Mount Disc, Fender Eyelets

• Tire Clearance
50c

• Drivetrain
MicroSHIFT Advent X 1x10-Speed

• Rear Derailleur
MicroSHIFT Advent X 10-Speed Wide-Range

• Shifters
MicroSHIFT Advent X 10-Speed

• Crankset
Forged Alloy 1x10 Crankset, Hollow CrMo Spindle, 42T Narrow Wide

• Bottom Bracket
External Sealed Cartridge Bearings

• Cassette
SunRace 10-Speed, 11-51T

• Chain
KMC X10

• Brakes
Tektro MD-C500 Dual Piston Road Mechanical Disc Brakes

• Brake Levers
MicroSHIFT Advent X

• Rotors
160mm Rotors

• Wheelset
Marin Aluminum Double Wall Rims, 19mm Inner Width, 24mm Tall

• Front Hub
Forged Aluminum Alloy, 32H

• Rear Hub
Forged Aluminum Alloy, 32H

• Tires
Schwalbe G-One Performance 700x40c, Folding Bead

• Handlebar
Marin Butted Alloy Compact Handlebar with 16° Flare

• Stem
Marin 3D Forged Alloy

• Seatpost
Marin Alloy, 27.2mm

• Saddle
Marin Beyond Road Concept Saddle

• Bar Tape
Marin Shock Absorbing Perforated Tape

• Headset
FSA Orbit IS Sealed Cartridge Bearings

• Weight
Not specified by manufacturer.

• Color Options
Gloss Chrome / Blue / Black (#9AA3A8)

Geometry

Built for riders seeking a capable gravel bike with wide tire clearance, adventure-ready versatility, and dependable mixed-terrain performance.
