Steel soul. Gravel attitude.

The Jamis Renegade S4 is a steel gravel bike built for riders who value comfort, durability, and all-day ride quality across pavement, gravel roads, and adventure routes.

Built around Jamis’ Reynolds 520 chromoly frame platform, the 2023 Renegade S4 delivers the smooth ride feel steel bikes are known for while combining modern gravel geometry, carbon fork compliance, and dependable Shimano Sora shifting. Unlike harsher aluminum gravel bikes, the Renegade S4 focuses on ride quality and long-distance comfort without sacrificing capability or versatility.

Key Features

• Reynolds 520 Chromoly Frame
Double-butted Reynolds 520 steel tubing delivers a smooth and controlled ride feel ideal for long gravel rides and mixed terrain adventures.

• Adventure ECO Carbon Fork
Lightweight carbon fork improves front-end comfort while adding cargo mounts and internal cable routing for adventure-ready versatility.

• Shimano Sora 2x9-Speed Drivetrain
Reliable Shimano Sora shifting paired with wide-range gearing provides dependable performance for climbing, commuting, and gravel exploration.

• Tektro Mechanical Disc Brakes
Flat mount mechanical disc brakes deliver consistent stopping power with easier maintenance and reliable all-weather performance.

• Tubeless-Ready Gravel Wheelset
WTB STX i23 TCS rims paired with WTB Riddler tires provide excellent traction, stability, and gravel-focused performance.

Technical Specifications

• Category
Gravel Bike

• Discipline
Gravel

• Frame
Jamis Size Specific Design Frame Geometry, SST Reynolds 520 Double-Butted Chromoly Main Tubes, Tapered Head Tube for Tapered Fork, Threaded BB Shell, 12mm Thru-Axle, Flat Mount Chain Stay Disc Brake Mounts, Down Tube Mounted Full Cable Housing, Internal Dropper Post Ready, 3 Water Bottle Mounts, TT Mounts, Rack and Fender Eyelets

• Fork
Jamis Adventure ECO Monocoque Carbon Composite Fork, 12mm Jamis MTS (Modular Thru-Axle System) with Stainless Interface and Carbon Dropouts, Tapered Steerer with 1.5” Hollow Formed Crown, Flat Mount Disc Brakes with Internal Cable Routing, Exposed Fender, Lowrider and 3 Water Bottle Eyelets

• Headset
FSA Orbit-C40B Internal, 1.5 - 1 1/8”

• Drivetrain
Shimano Sora 2x9-Speed

• Rear Derailleur
Shimano Sora RD-R3000 GS

• Front Derailleur
Shimano Sora FD-R3000 Front with 31.8mm Alloy Clamp

• Shifters
Shimano Sora ST-R3000 Dual Control STI, 18-Speed

• Crankset
FSA Vero, 50/34T

• Cassette
SunRace CMS90 9-Speed, 11-34T

• Chain
KMC Z9

• Bottom Bracket
FSA Sealed Cartridge, 68 x 110.5mm

• Brakes
Tektro Lyra Mechanical Cable Actuated Flat Mount Disc Brakes with 160mm Wave Rotors and Shimano Sora ST-R3000 Levers

• Wheelset
WTB STX i23 TCS 2.0 Disc Rims, 32H, Joytech Alloy 6-Bolt Hubs, 14g Stainless Steel Spokes and Front 12mm / Rear 12x142 Thru-Axle with Switch Lever

• Tires
WTB Riddler 700 x 37c, 30TPI with Protection Belt

• Handlebar
Ritchey Baquiano Comp 6061 Aluminum, 73 Reach, 118 Ergonomic Drop with 12° Flare

• Stem
Ritchey 4-Axis 3D Forged 6061 Alloy, 6° Rise

• Bar Tape
Jamis Suede Tape with Gel Inserts

• Seatpost
Jamis Road Micro-Adjust, 27.2 x 350mm Cromo Seat Pin

• Saddle
Selle Royal Gravel Saddle with Ventilation Channel and CRMO Rails

• Weight
23.0 lbs

• Color Options
Riptide (#2E6F7E)

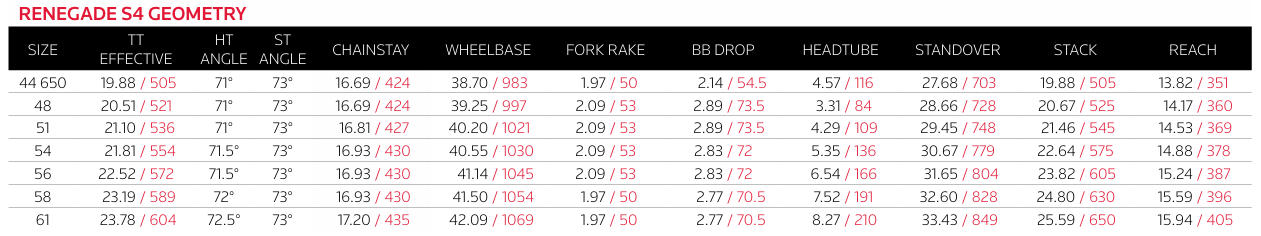

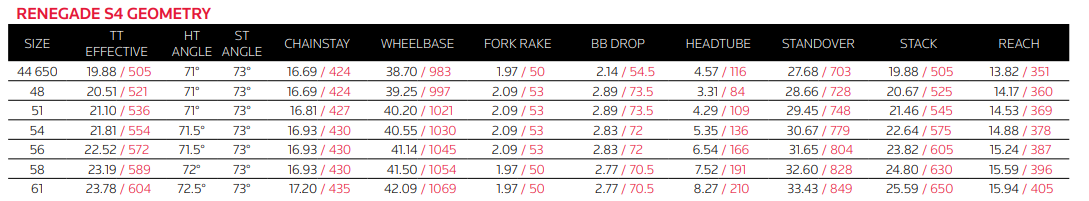

Geometry

Built for riders seeking the smooth ride feel of steel with the versatility to handle gravel roads, daily commutes, and long adventure rides.
