Feedback Sports | Sprint Bike Repair Stand

Professional-level stability in a compact, travel-ready design.

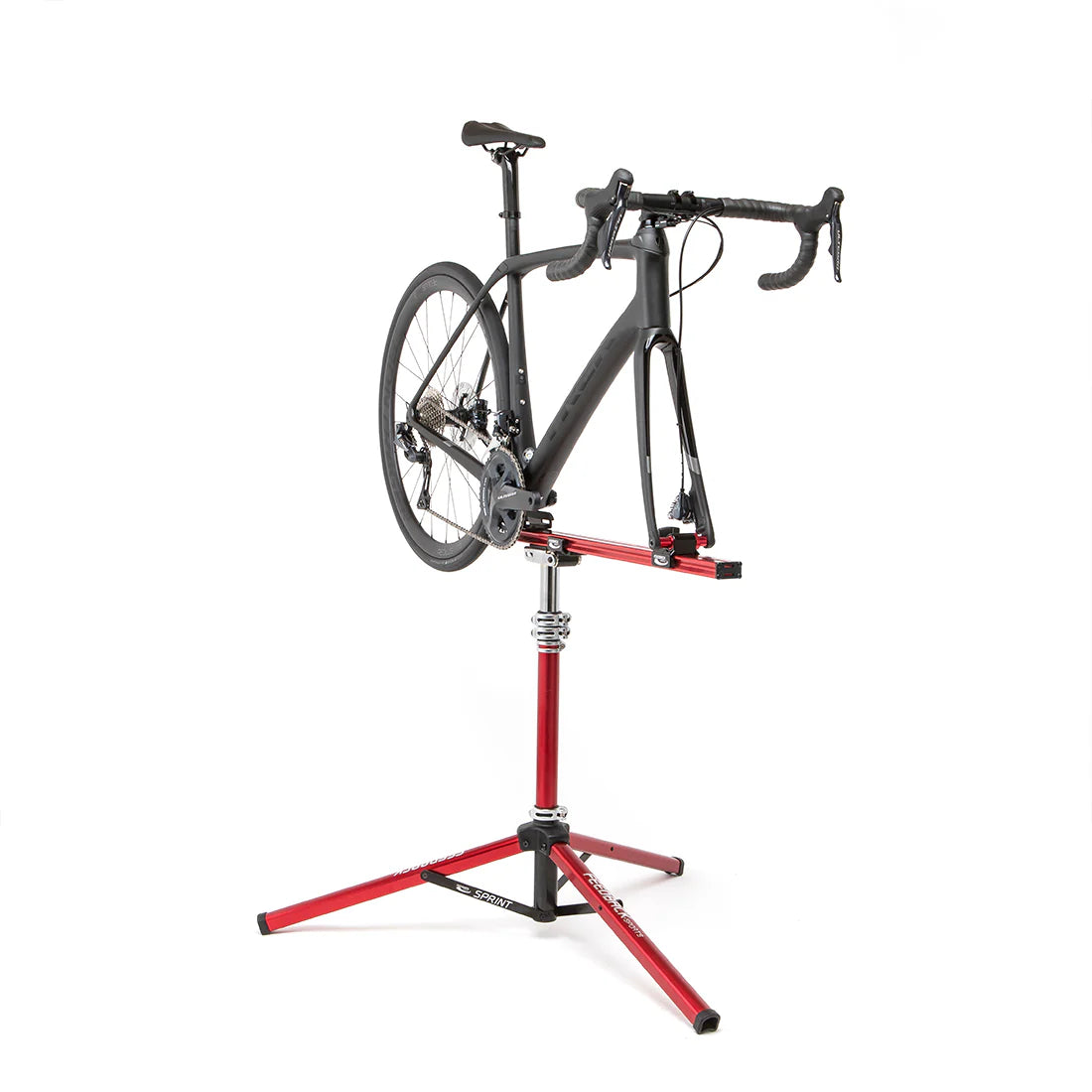

The Feedback Sports Sprint Bike Repair Stand (16690) is a dropout-style work stand engineered for maximum rigidity, stability, and efficiency. By securing the bike at the fork or rear dropouts, the Sprint creates the most secure bike-to-stand connection possible—centering the bike’s mass directly over the tripod base for exceptional stability.

Favored by professional mechanics and frequently seen in elite race environments, this stand delivers a wobble-free platform for precision wrenching and washing. Its 360° rotating platform allows the bike to move while you stay positioned near your tools, optimizing workflow and efficiency.

Key Features

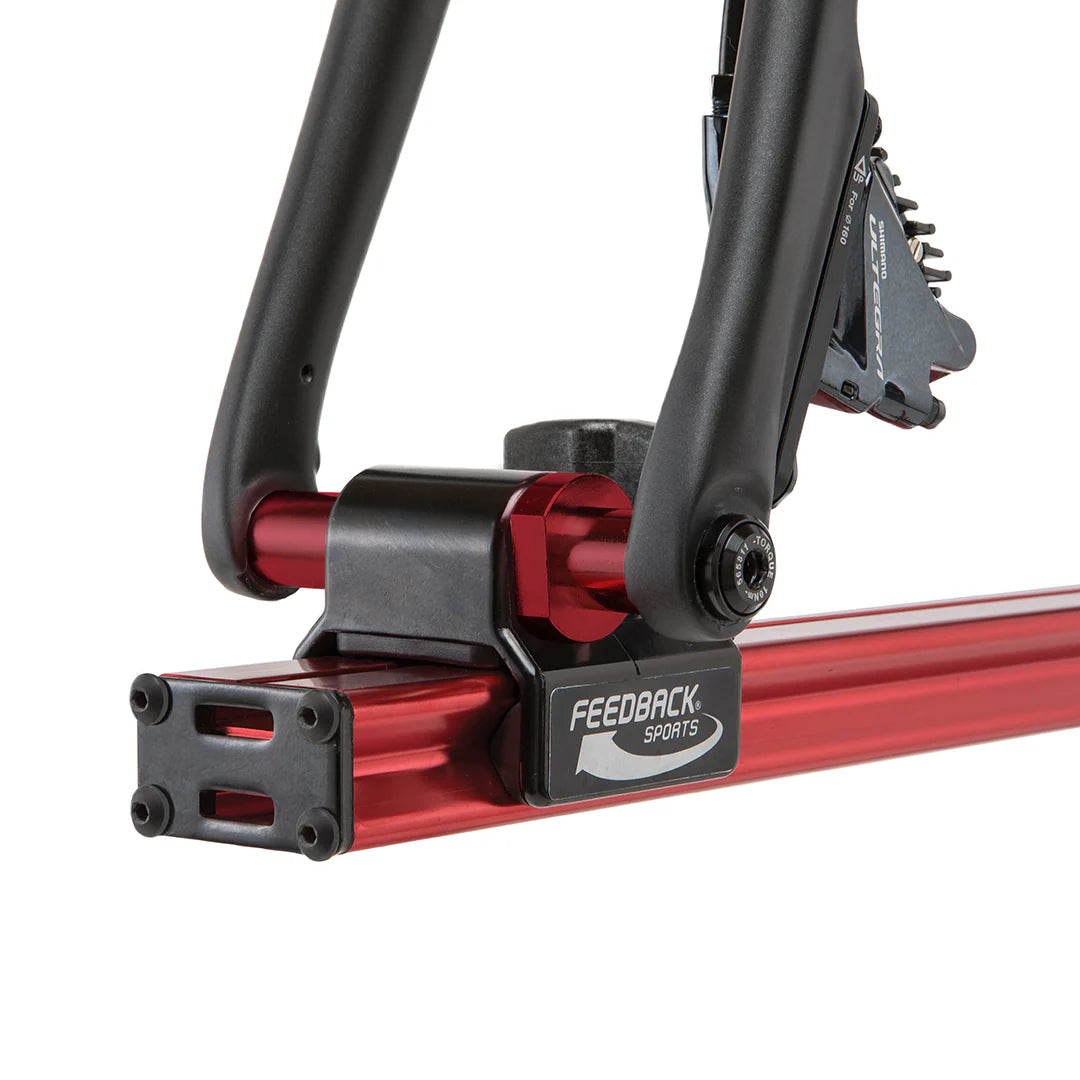

• Dropout-Style Mounting System – Fork or rear dropout mounts provide the most rigid and stable bike support.

• 360° Rotating Platform – Enables full access to the frame while keeping the mechanic stationary.

• Broad Compatibility – Adapts to quick-release and thru-axle standards for road, gravel, mountain, triathlon, and select e-bikes.

• Included Adapters –
QR: 9×100 / 130 / 135mm
Thru Axle: 12×100mm / 142mm / 148mm (Boost Rear)
Thru Axle: 15×100mm / 110mm (Boost Front)

• Optional Adapter Available – Thru Axle: 20×110mm (sold separately).

• 6063 T6 Aluminum Construction – Anodized, ultralight, corrosion-resistant, and highly durable.

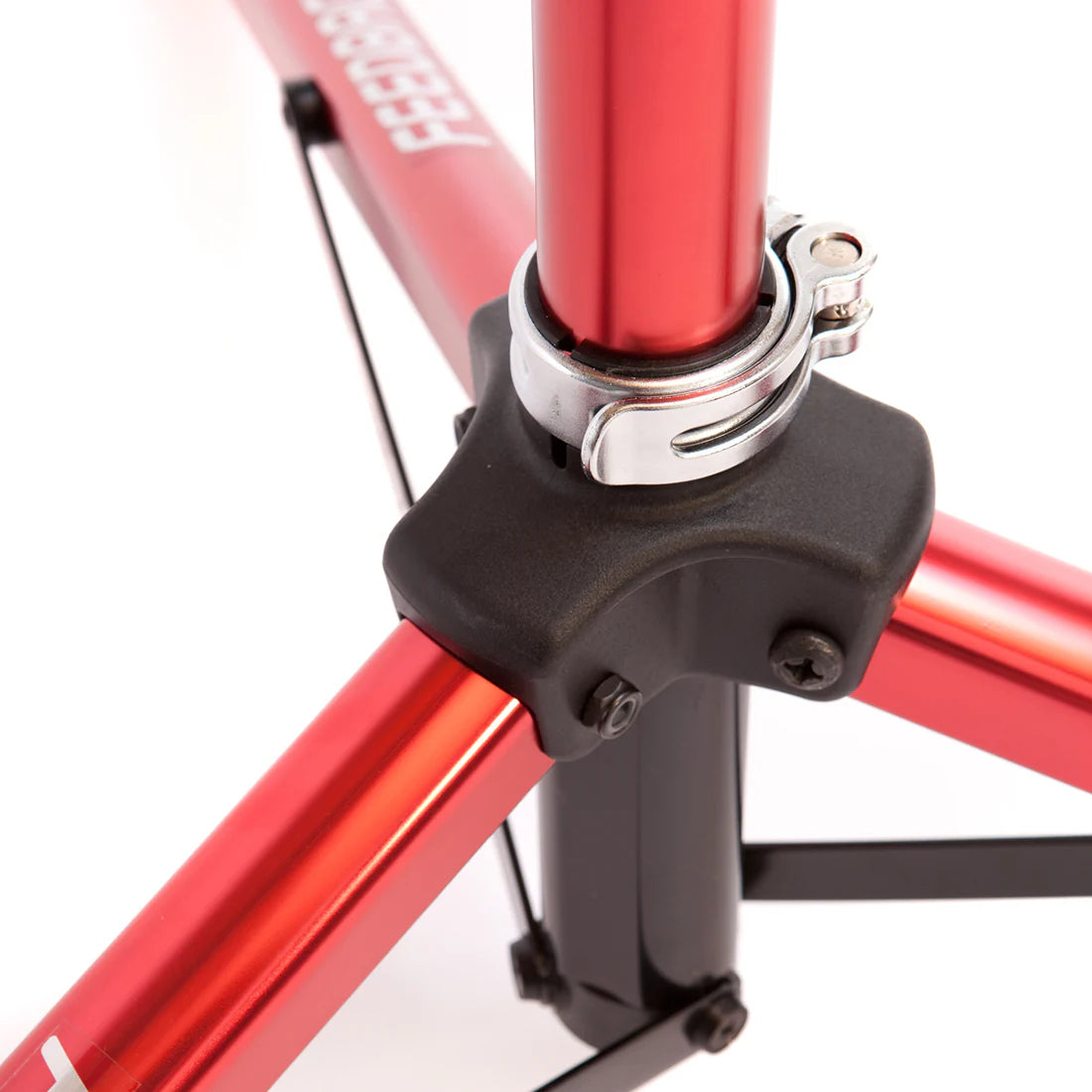

• Stiff Tripod Base – Wide stance with rubber-coated end caps for stability on uneven surfaces.

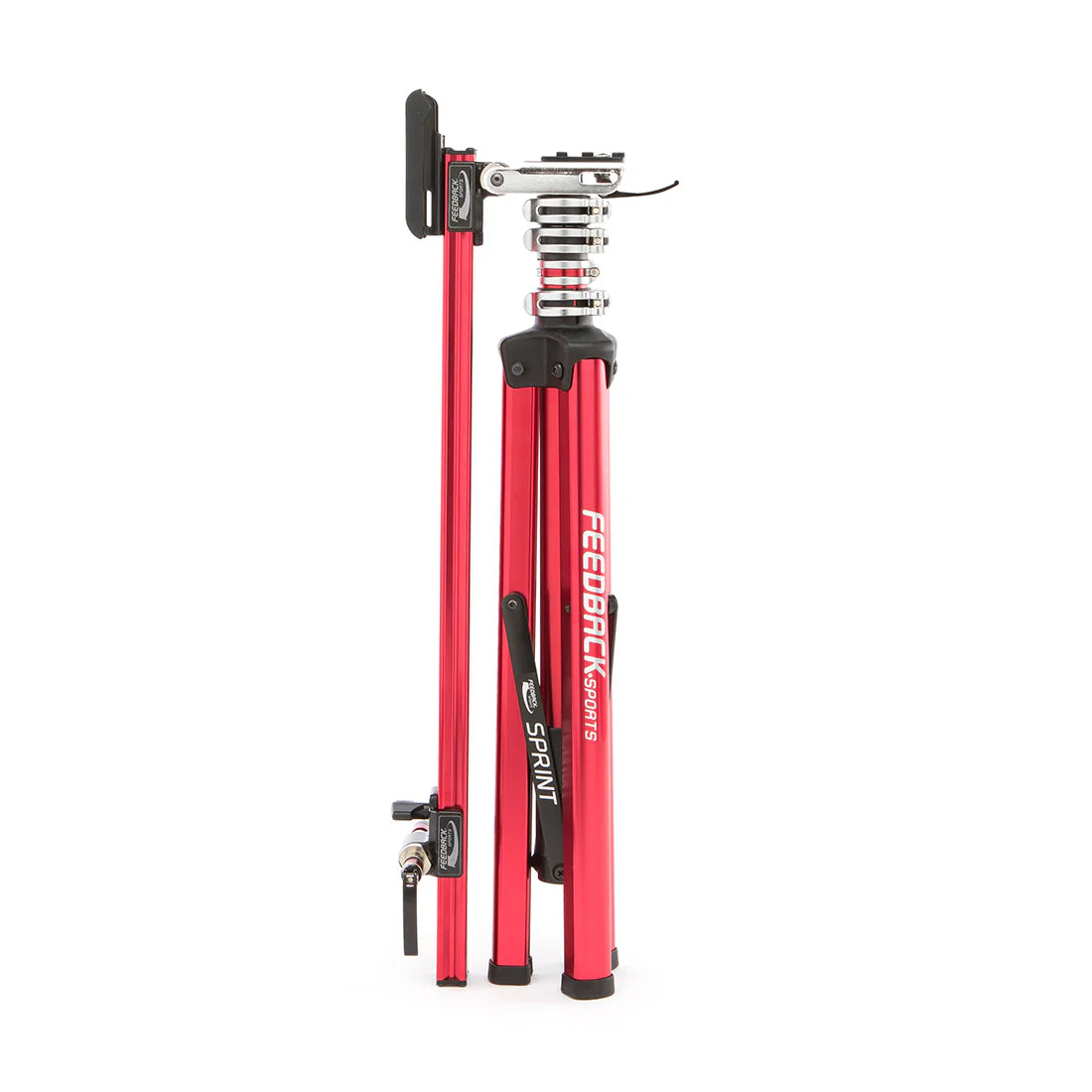

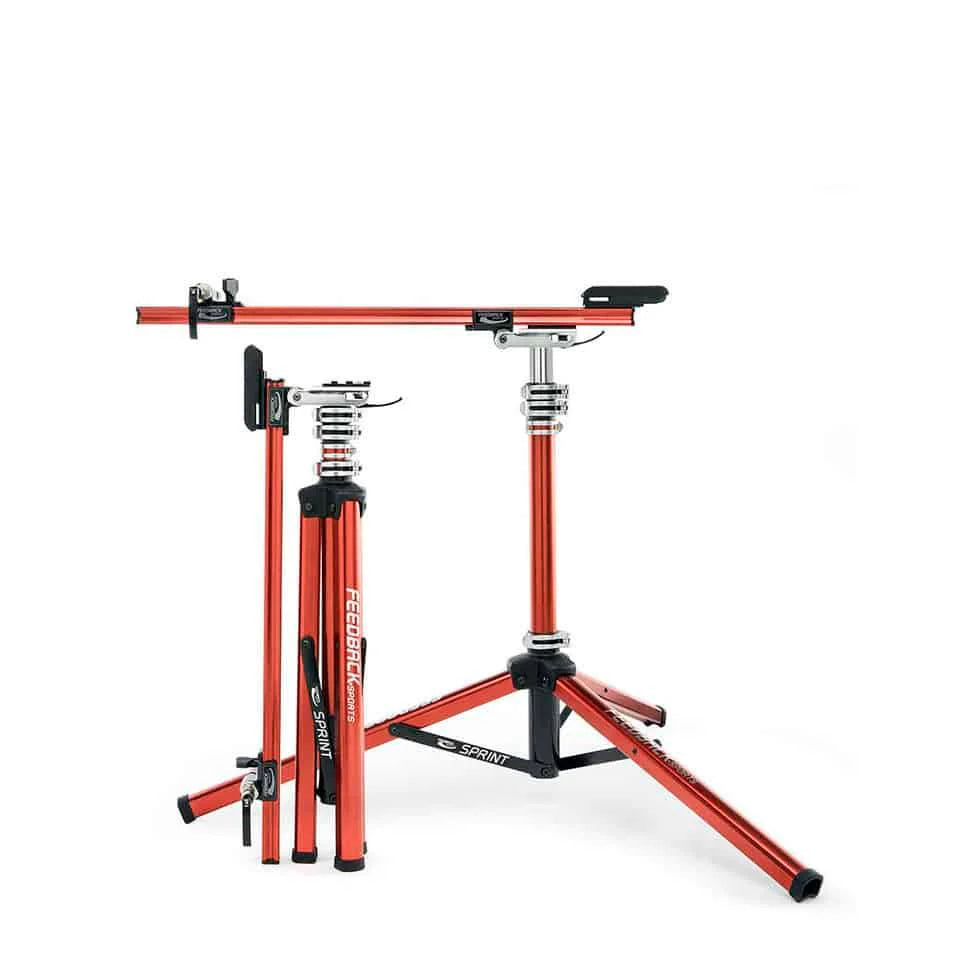

• Compact & Travel-Friendly – Folds to 5" x 7.5" x 30" (13 x 19.1 x 76 cm) for easy transport.

• Quick-Release Fittings – Fast setup and breakdown for storage or travel.

Technical Specifications

• Weight: 12.0 lbs (5.4 kg)
• Maximum Load Capacity*: 85 lbs (39 kg)
• Optimized For: Bikes up to 40 lbs (18.1 kg)
• Clamp Type: Dropout (Fork or Rear)
• Clamp Height Adjustment Range: 30" – 48"
• Maximum Clamp Height: 48"
• Tripod Leg Stance Width: 45.5" Diameter
• Materials: 6063 Aluminum
• Tube & Leg Fittings: Quick Release
• Travel Bag: Optional (sold separately)

Note: Telescoping tube and tripod legs are not compatible or interchangeable with other Feedback Sports stands (e.g., Pro Mechanic-style clutch bodies or clamp jaw arms).

*Maximum weight capacity assumes the stand is placed on level ground with the clamp jaw oriented directly over a tripod leg, and with the bike’s center of gravity positioned directly below the clamp head.

Suitable for road, gravel, cyclocross, triathlon, mountain bikes, and select lightweight e-bikes.
