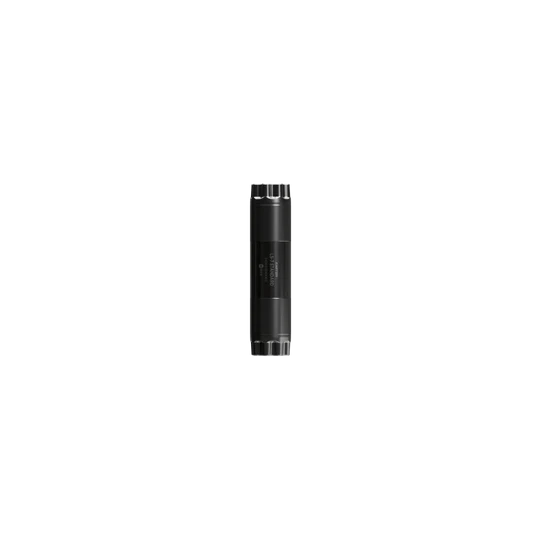

Easton | Lite-Spline CINCH Spindle Kit | LS Wide

The wider foundation for a proper gravel drivetrain.

The Easton Lite-Spline CINCH LS Wide Spindle connects EC90 ALX crank arms to Shimano gravel drivetrains with the spacing needed for modern GRX and CUES chainlines.

Its shorter wave-taper interface allows the EC90 ALX crank arms to use shallower spindle inserts. This removes unnecessary material from the crank arms, reduces weight, and increases heel clearance.

The LS Wide spindle is optimized for both 1x and 2x GRX chainlines and supports a broad range of road and gravel bottom bracket standards.

Important Compatibility Note

This LS Wide spindle is designed exclusively for Easton EC90 ALX crank arms. It is not backward-compatible with previous-generation Easton crank arms.

Crank arms, chainring, bottom bracket, and crankset spacer kit are not included.

Key Features

• Gravel-Optimized Chainline
The wider spindle spacing is designed for Shimano gravel drivetrains, including GRX and CUES.

• 1x and 2x GRX Compatibility
Optimized for both single-chainring and double-chainring Shimano GRX configurations.

• Lite-Spline Interface
A shorter wave-taper interface allows the EC90 ALX crank arms to use smaller, lighter spindle inserts.

• Increased Heel Clearance
The compact interface helps reduce bulk around the crank arms for more space during each pedal stroke.

• Broad Bottom Bracket Support
Compatible with several road, gravel, and MTB-width bottom bracket standards.

Technical Specifications

• Category
Crank Spindle Kit

• Discipline
Gravel

• Spindle Version
Lite-Spline Wide

• Interface
Easton Lite-Spline CINCH

• Spindle Diameter
30mm

• Crank Arm Compatibility
Easton EC90 ALX only

• Drivetrain Compatibility
Shimano Gravel, including GRX and CUES

• GRX Compatibility
Optimized for 1x and 2x GRX chainlines

• Bottom Bracket Compatibility
BB86 / BSA68 / PF30 68 / BBRight / T47 / BB386 EVO / BB92 / BSA73 / PF30 73

• Included Components
One Easton Lite-Spline CINCH LS Wide Spindle Kit

• Excluded Components
Crank arms, chainring, bottom bracket, and crankset spacer kit

Made wide for gravel, made light for the EC90 ALX.
