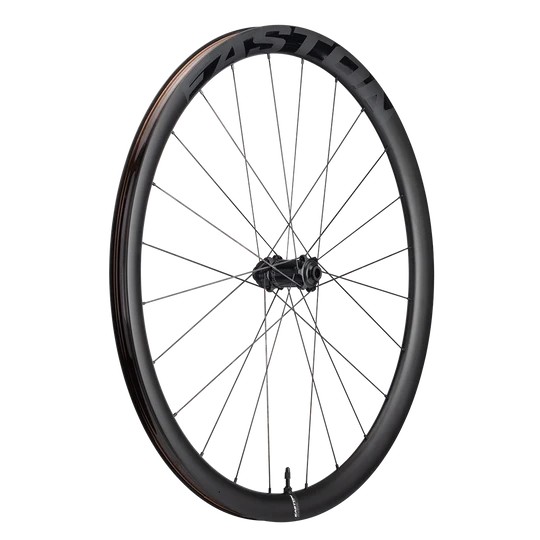

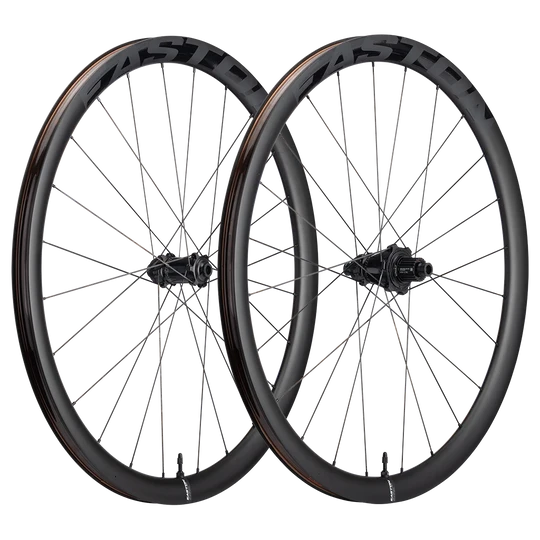

Easton | EC90 ALX Wheelset

Gravel speed, shaped by the wind.

The Easton EC90 ALX is an aerodynamic carbon wheelset designed for gravel riders chasing more speed without giving up comfort or control on rough surfaces.

Its 36mm rim depth provides a clear aerodynamic advantage over shallower gravel rims while remaining manageable in crosswinds. A 24mm internal width shapes wider gravel tires for a stable profile, predictable handling, and better aerodynamic performance.

Sapim CX-Ray bladed spokes connect the carbon rims to Easton Vault hubs, combining low weight with quick 6-degree engagement for responsive acceleration across pavement, hardpack, and broken terrain.

Important Compatibility Note

These are hookless, tubeless-ready rims. Use only hookless-compatible 700C tires within the approved 30mm to 53mm width range.

The hubs use Center Lock disc rotor mounts and support rotors up to 180mm. Rim brakes are not compatible.

Choose the correct freehub body for your cassette:

• MS12: Shimano Micro Spline 12-speed cassettes
• XDR: SRAM XDR cassettes

Key Features

• Aero-Tuned 36mm Rim Depth
Provides a measurable aerodynamic benefit while limiting excess weight, harshness, and crosswind instability.

• Gravel-Optimized Rim Profile
A 24mm internal and 30mm external width creates a stable shape for modern gravel tires.

• Hookless Tubeless-Ready Construction
Supports lower tire pressures for improved traction, comfort, and control over rough surfaces.

• Easton Vault Hubs
The 60-point drive system provides quick 6-degree engagement when accelerating or putting power down.

• Sapim CX-Ray Bladed Spokes
Lightweight bladed spokes contribute to the wheelset’s aerodynamic profile and responsive ride feel.

• Lightweight Carbon Build
The XDR wheelset weighs 1,495g before tubeless tape and valves are installed.

Technical Specifications

• Category
Carbon Gravel Wheelset

• Wheel Size
700C

• Rim Material
Carbon

• Rim Type
Hookless Tubeless Ready

• Rim Depth
36mm

• Internal Rim Width
24mm

• External Rim Width
30mm

• Tire Compatibility
700C x 30mm to 53mm

• Spokes
Sapim CX-Ray bladed spokes

• Nipples
External Secure Lock aluminum nipples

• Hub Type
Easton Vault Center Lock

• Front Axle
12x100mm

• Rear Axle
12x142mm

• Freehub Options
Shimano Micro Spline 12-speed / SRAM XDR

• Hub Engagement
60 points / 6°

• Bearings
Sealed cartridge bearings

• Brake Compatibility
Disc brake only

• Rotor Interface
Center Lock

• Maximum Rotor Size
180mm

• Wheelset Weight
1,495g for the XDR version, without tubeless tape and valves

• Finish
Matte Carbon with vinyl decals

• Included Components
Front wheel, rear wheel, Easton tubeless tape, tubeless valves, and extra rear spokes

• Excluded Components
Tires, brake rotors, cassette, and thru-axles

Aero where gravel gets fast, composed where gravel gets rough.
