Crankbrothers | Stamp EVO Alloy Flat Pedals
Crankbrothers | Stamp EVO Alloy Flat Pedals
IN STOCK
Couldn't load pickup availability
More support. Less fatigue. Complete control.

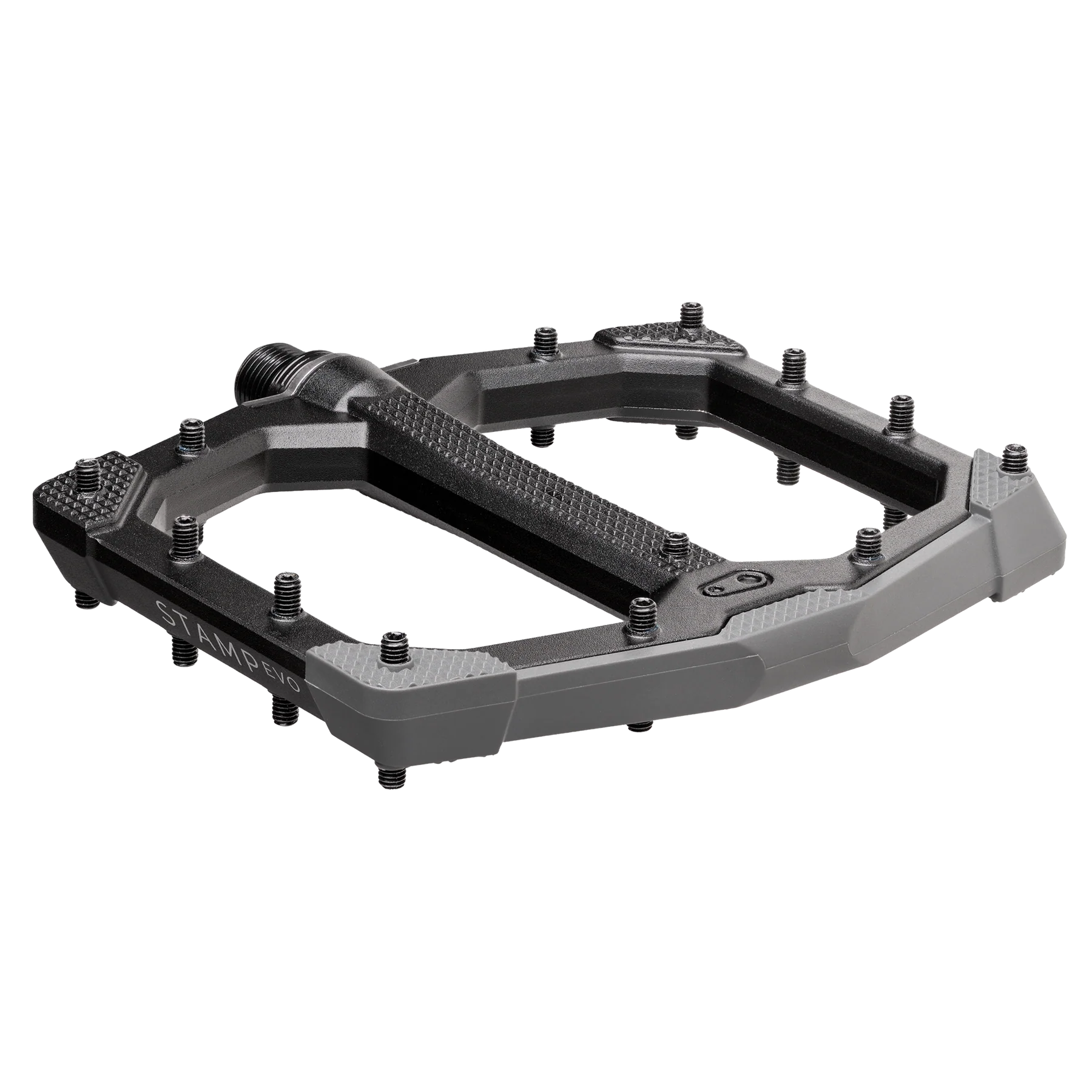

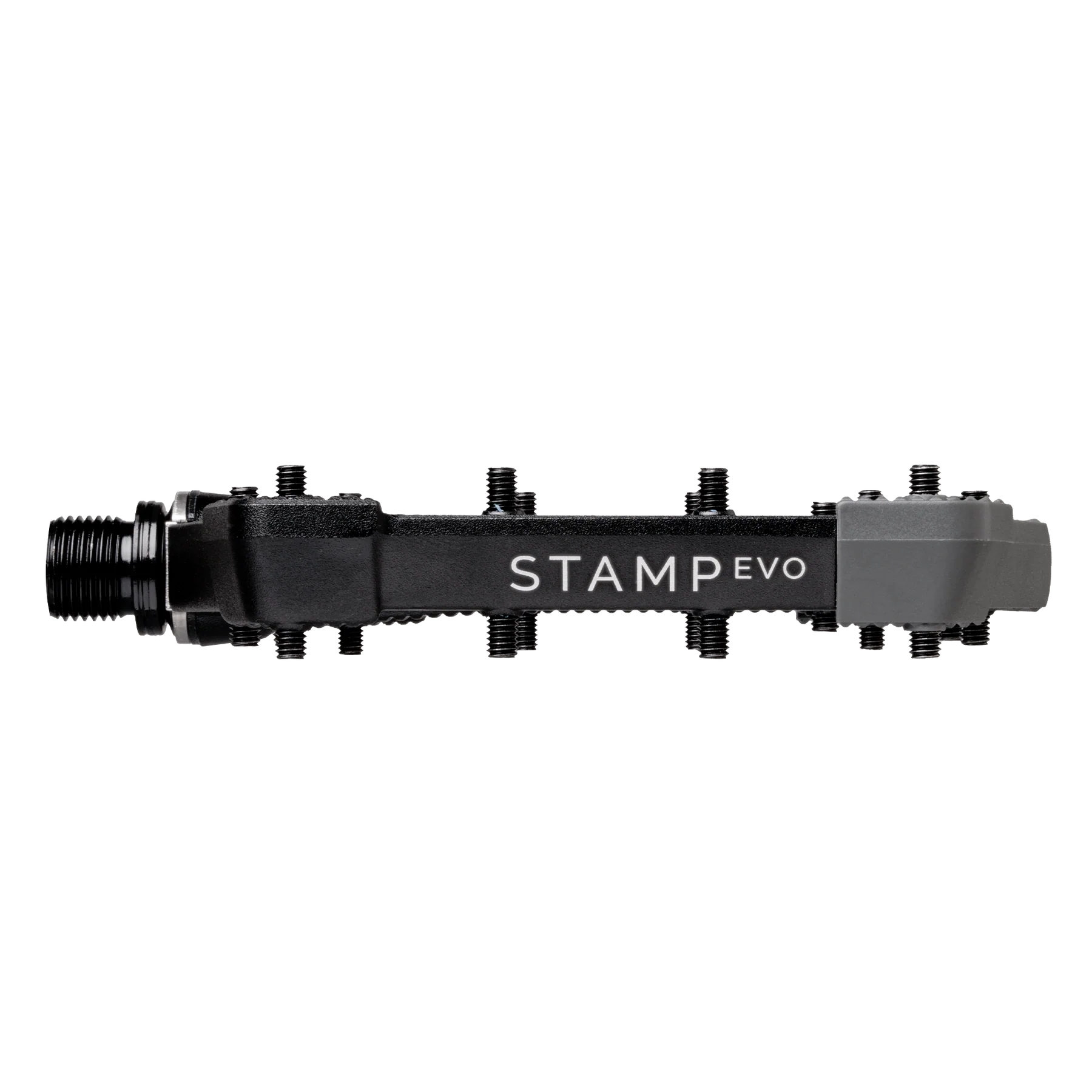

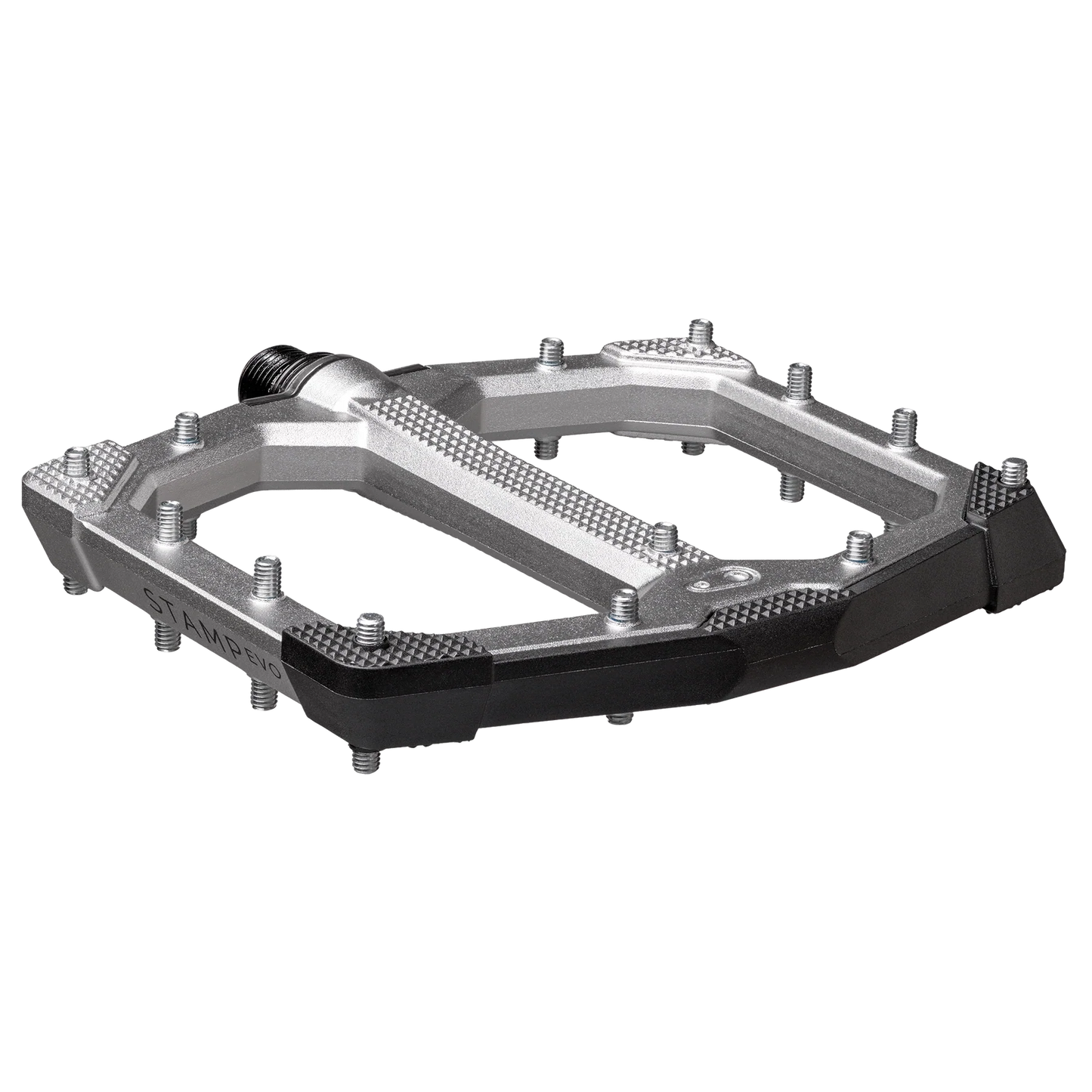

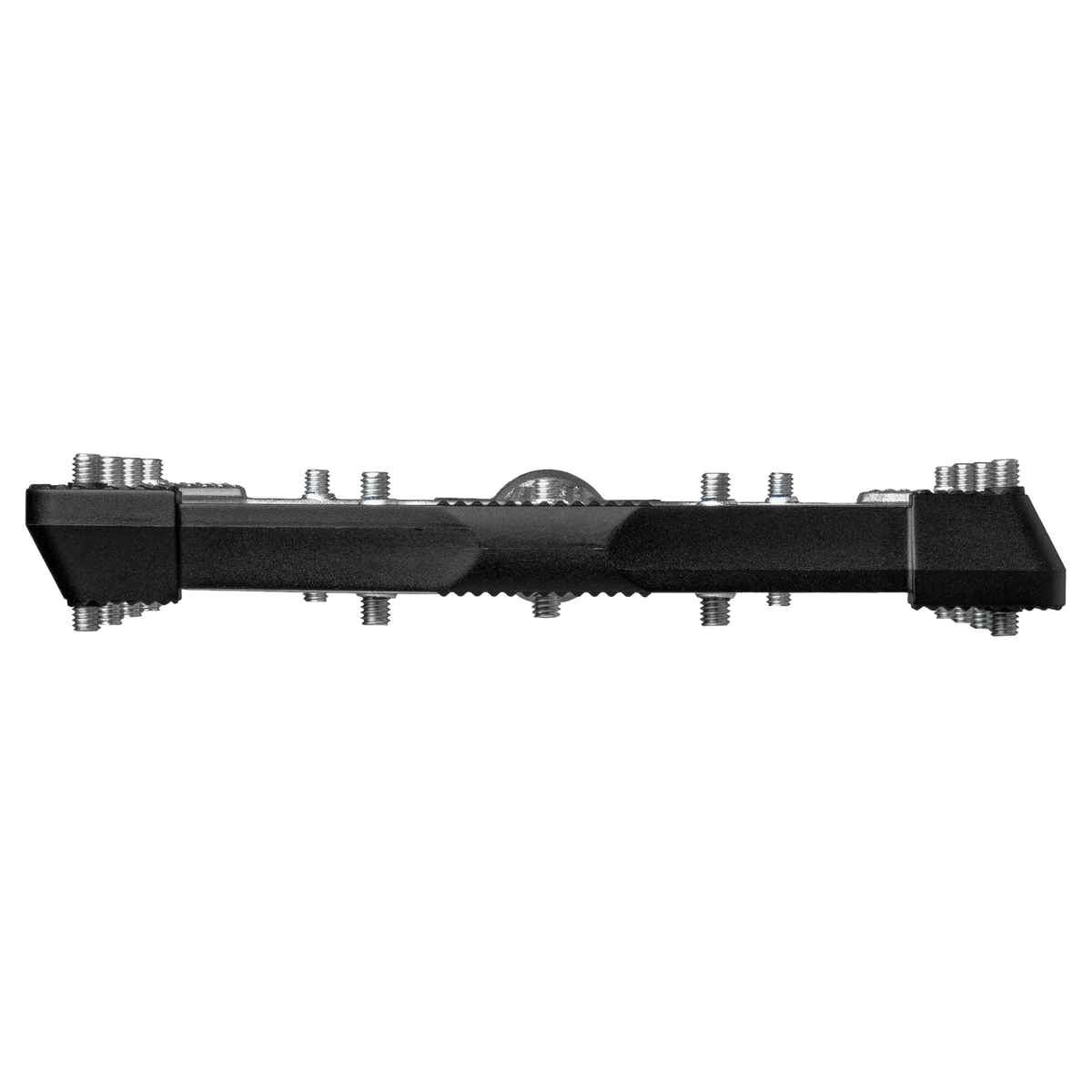

The Crankbrothers Stamp EVO is an extended-platform flat pedal engineered for greater stability, comfort, and efficiency across demanding terrain.
Its platform is 20% longer than the Stamp 7, creating a larger contact area that supports more of the foot and helps reduce fatigue during long rides. This added support improves control through rough sections and helps riders get more out of every pedal stroke while climbing.

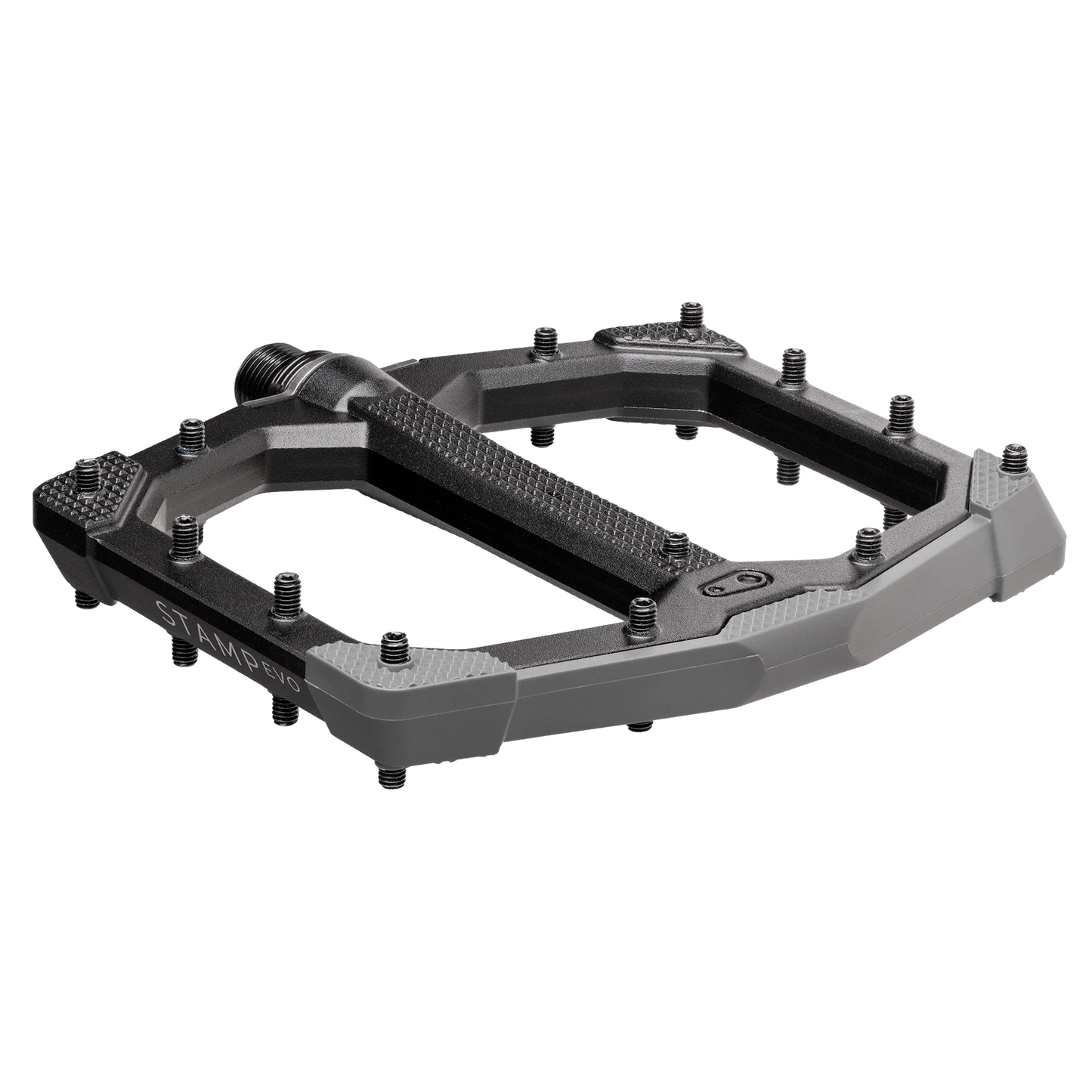

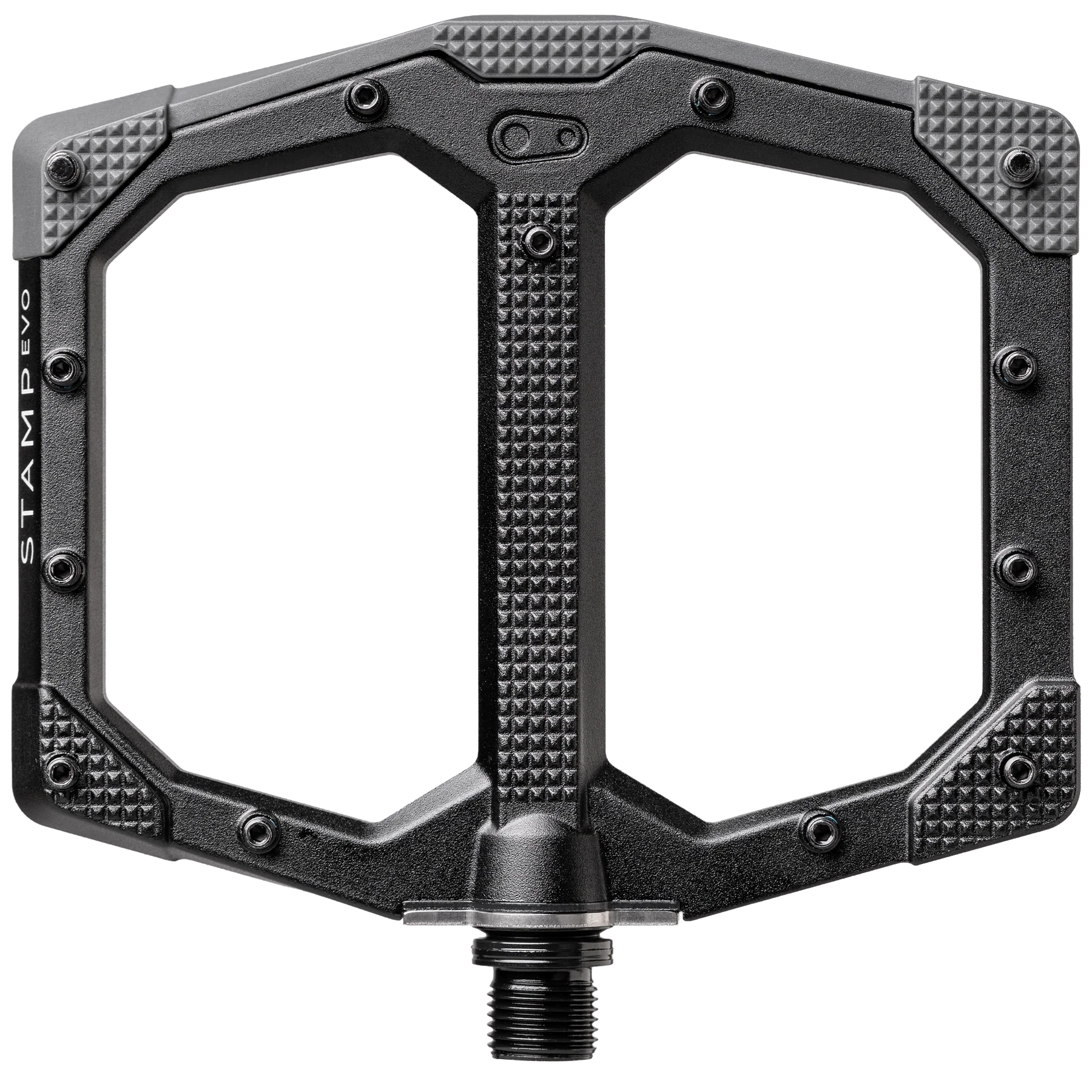

A thin, concave profile and 13 adjustable pins per side provide a secure foothold, while the two-material construction combines a forged aluminum body with replaceable composite bashguards. Available in two platform sizes, the Stamp EVO provides a better pedal-to-shoe interface across a wide range of riders.
Key Features
• Extended Platform
The platform is 20% longer than the Stamp 7, providing greater foot support, stability, and comfort.
• Improved Pedaling Support
The larger contact area helps reduce foot fatigue and provides additional support while climbing and riding through demanding terrain.
• Size-Specific Design
Small and Large platform options provide a more suitable pedal-to-shoe interface across different shoe sizes.
• Thin, Concave Profile

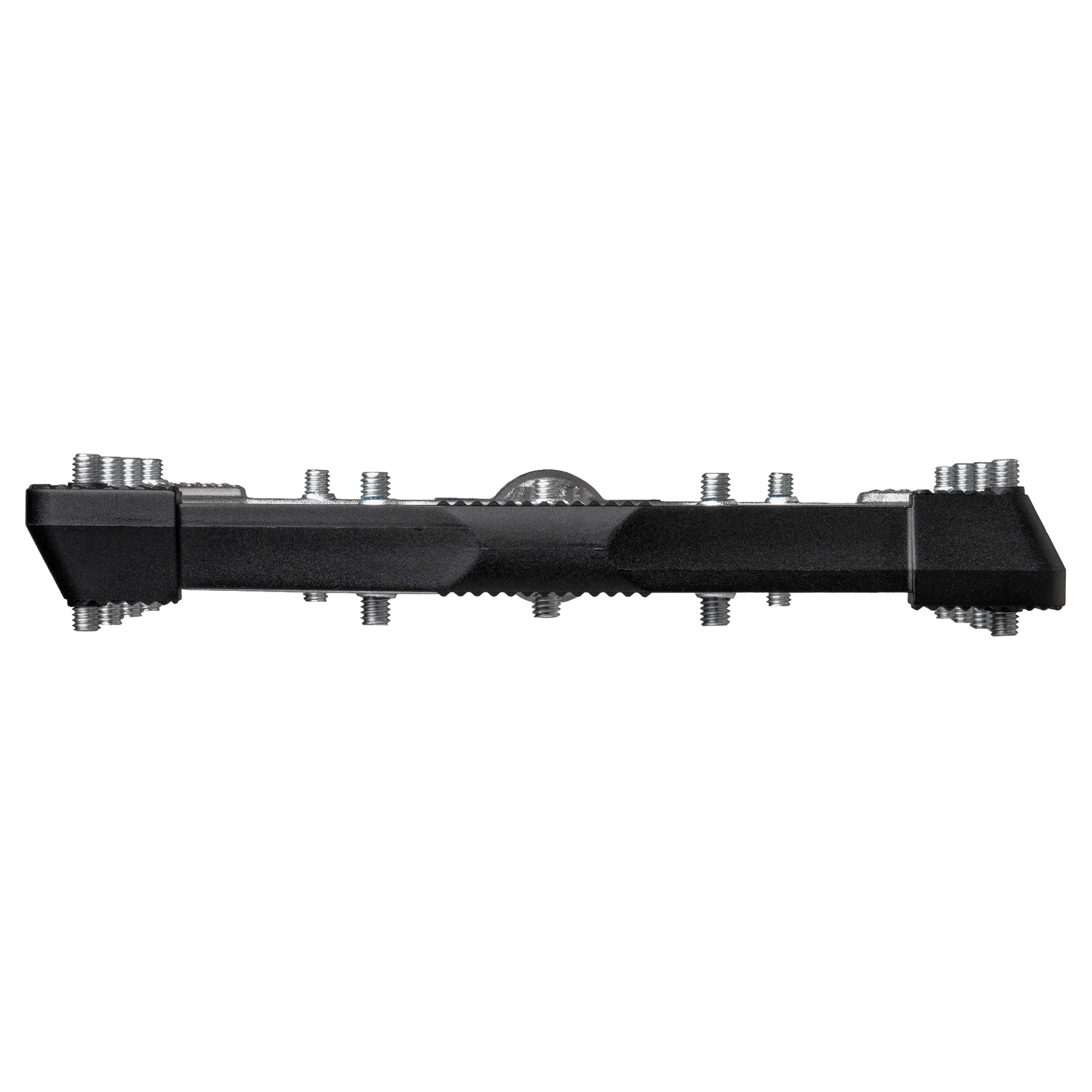

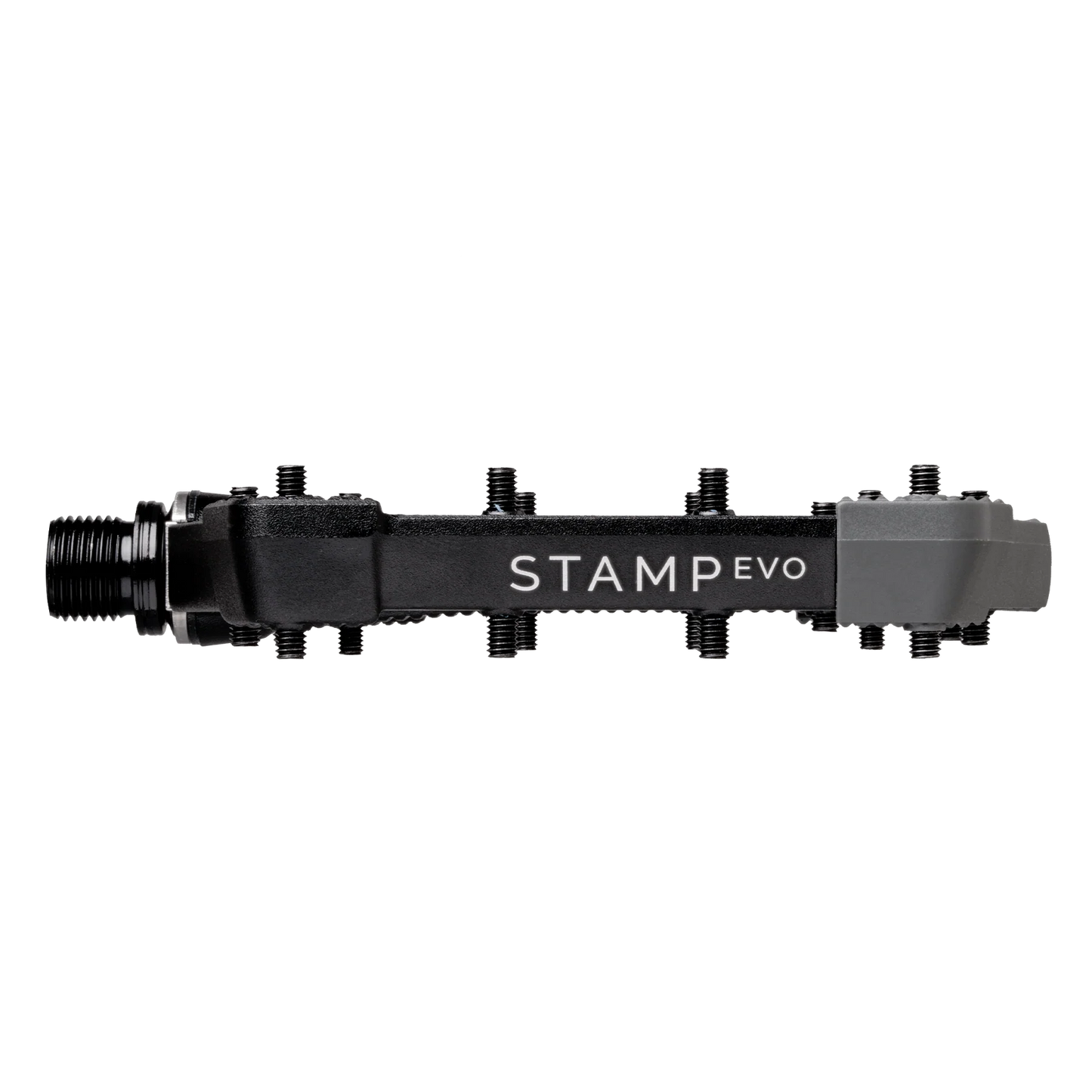

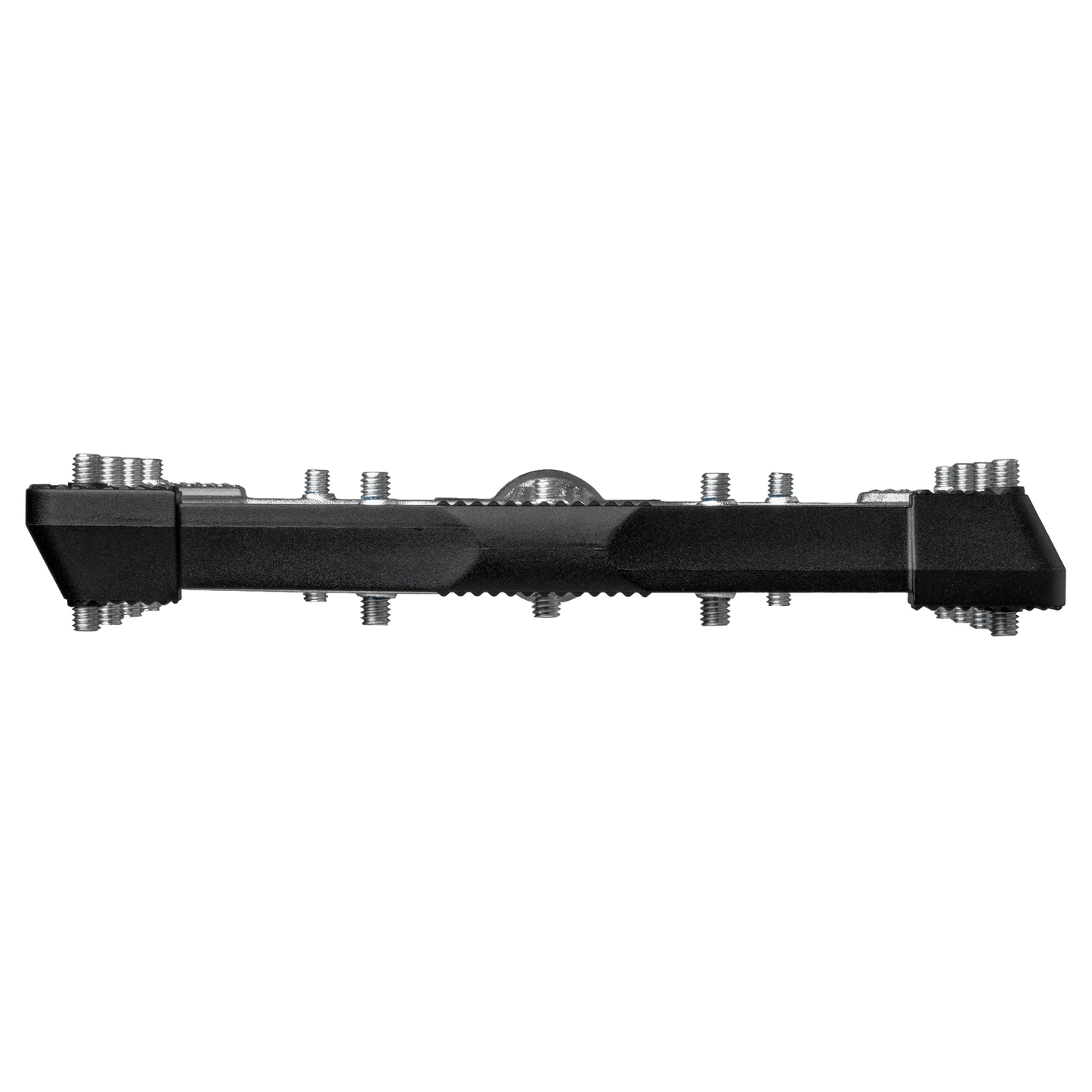

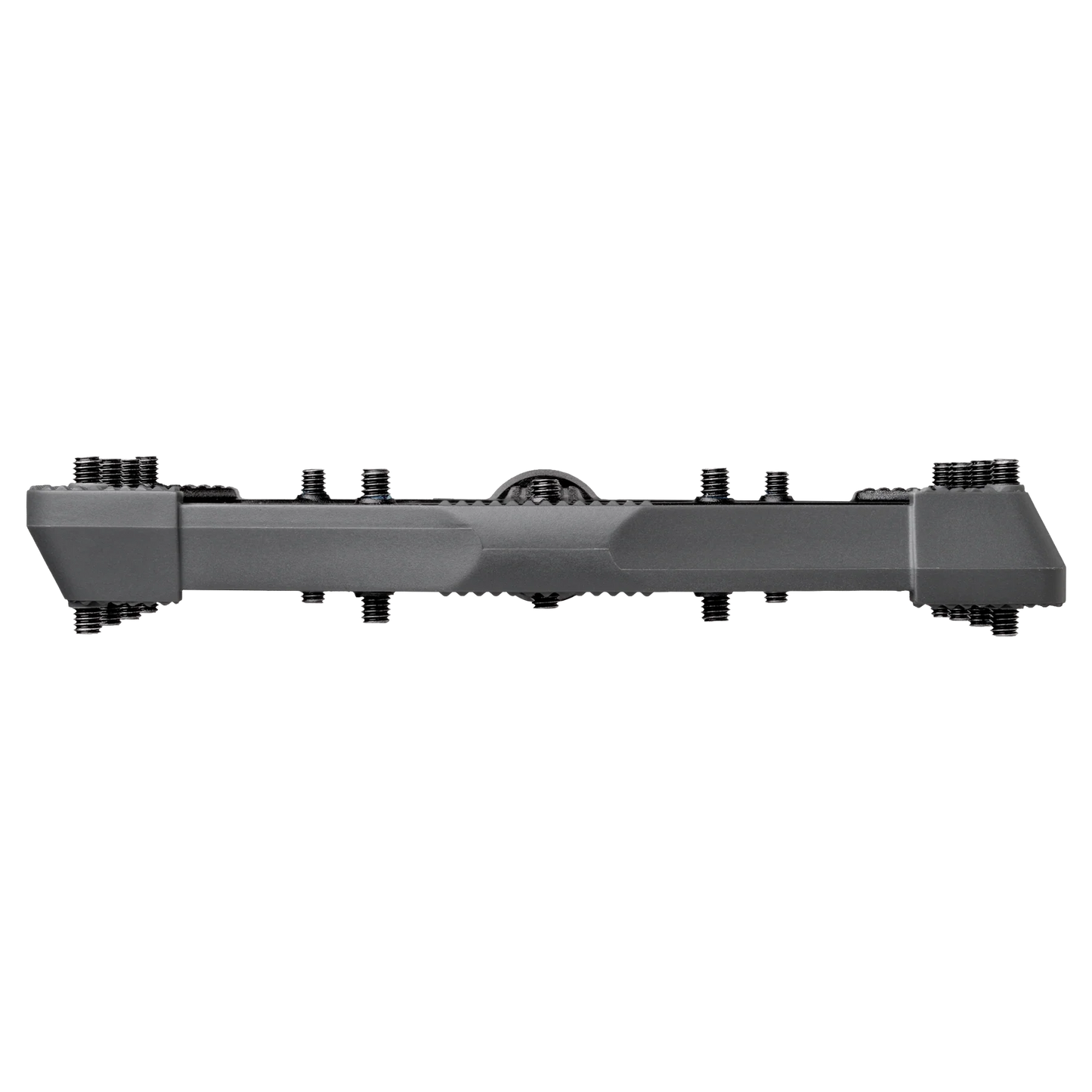

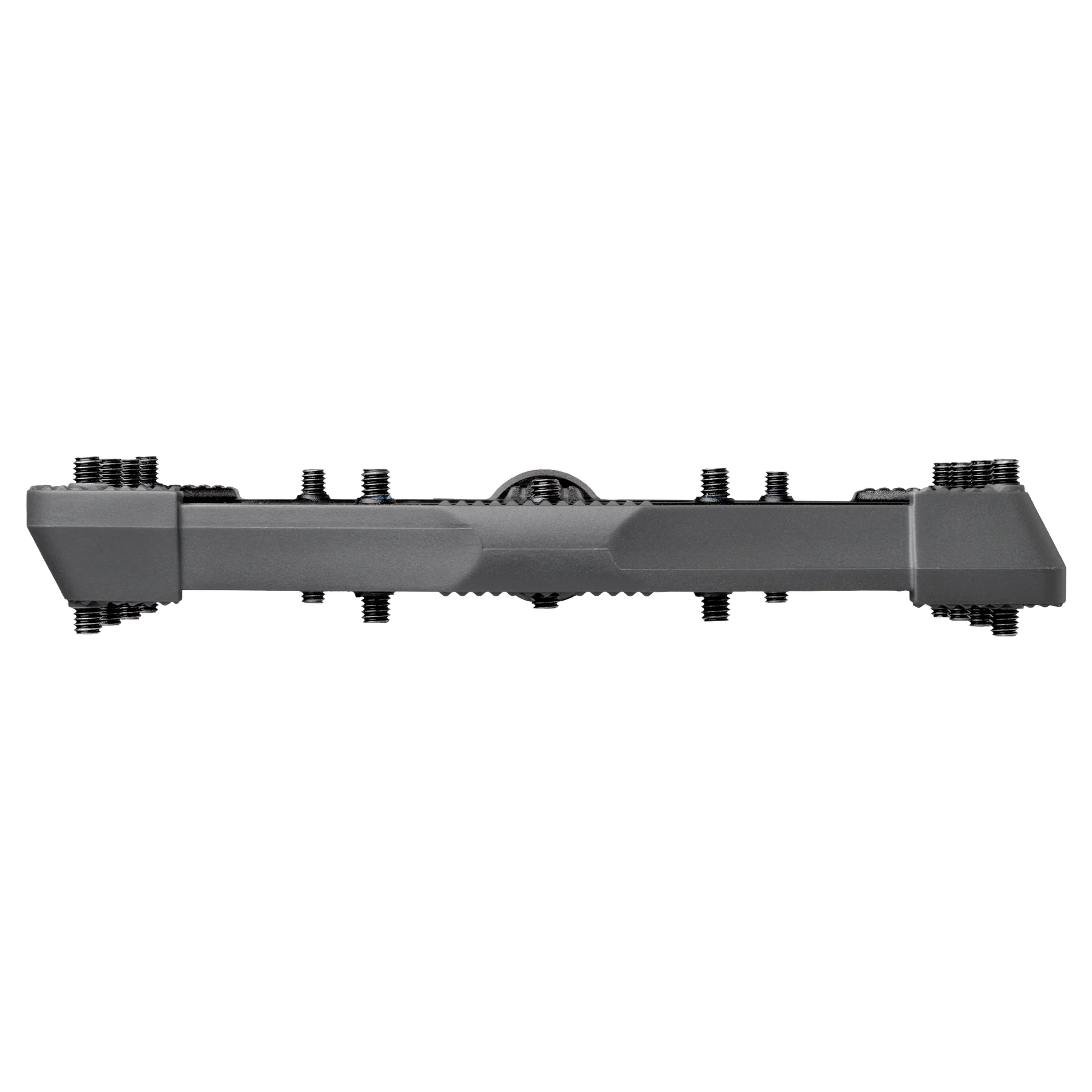

An 11mm to 15.5mm profile with 2.25mm of concavity per side helps position the foot securely on the pedal.
• Adjustable Traction
Thirteen adjustable pins per side provide dependable grip and allow the pedal interface to be tuned to rider preference.
• Two-Material Construction
A forged aluminum body provides strength and durability, while reinforced nylon composite bashguards protect the pedal against impacts.
• Replaceable Bashguards
The composite bashguards help deflect rock strikes, reduce pedal hang-ups, and can be replaced when worn.
• Premium Bearing and Seal System
IGUS LL-glide bearings and a premium V-ring seal provide smooth, durable performance in demanding riding conditions.
• Serviceable Construction
Replaceable pins, bashguards, bearings, and seals allow the pedals to be maintained and refreshed over time.
• Extra Components Included
An additional traction pin kit and replacement bashguards are included with each pair.
Technical Specifications
• Category
Platform Pedals
• Discipline
Mountain Bike
• Recommended Riding
Trail, Enduro, Downhill, and E-MTB
• Body Material
Forged 6061-T6 aluminum
• Bashguard Material
Reinforced nylon composite
• Platform Profile
11mm to 15.5mm
• Platform Concavity
2.25mm per side
• Traction Pins
13 adjustable pins per side
• Pin Lengths
8mm, 10mm, and 23mm
• Inner Bearing
IGUS LL-glide bearing
• Outer Bearing
IGUS LL-glide bearing
• Seal System
Premium V-ring
• Spindle Material
Forged SCM 435 chromoly steel
• Maximum Rider Weight
No restriction

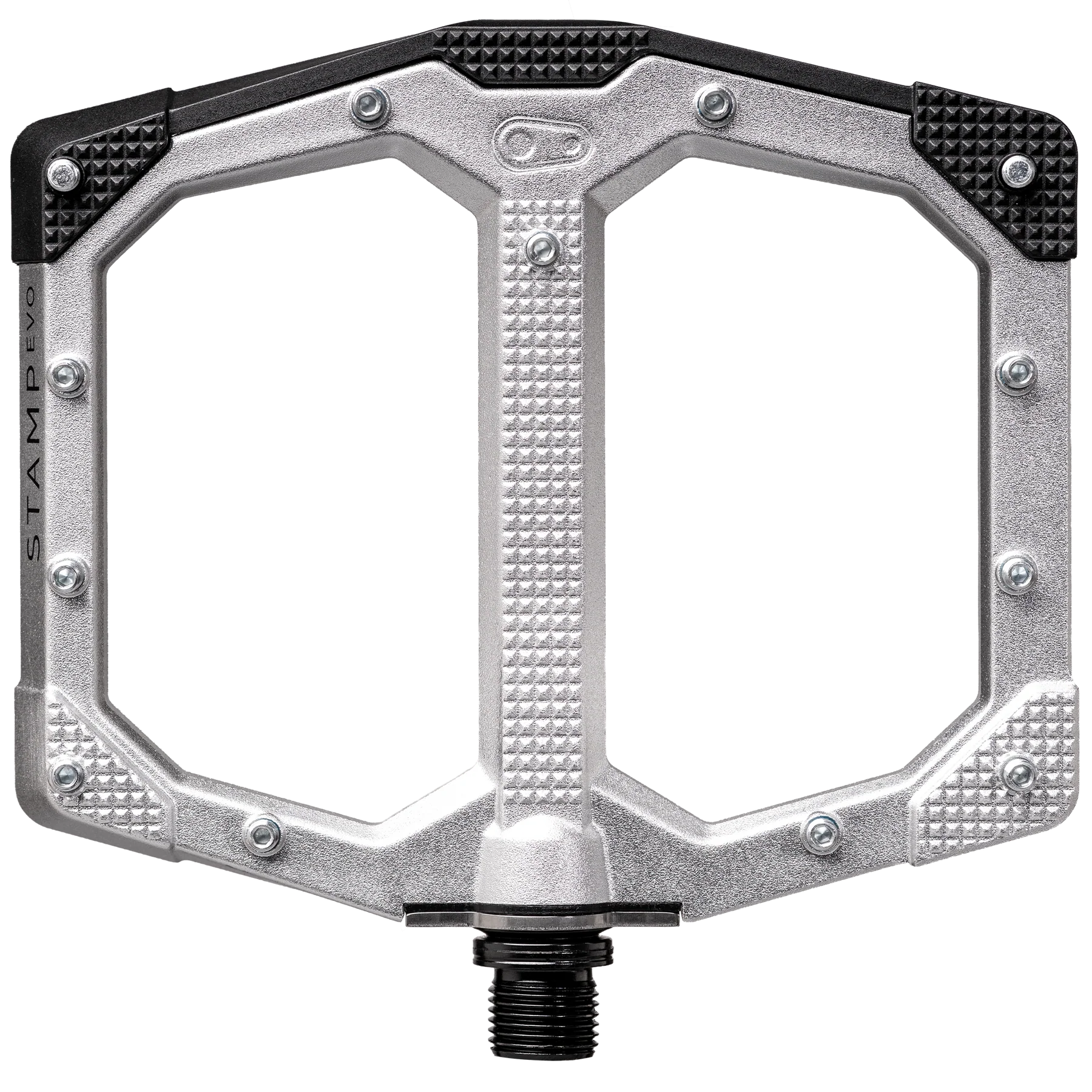

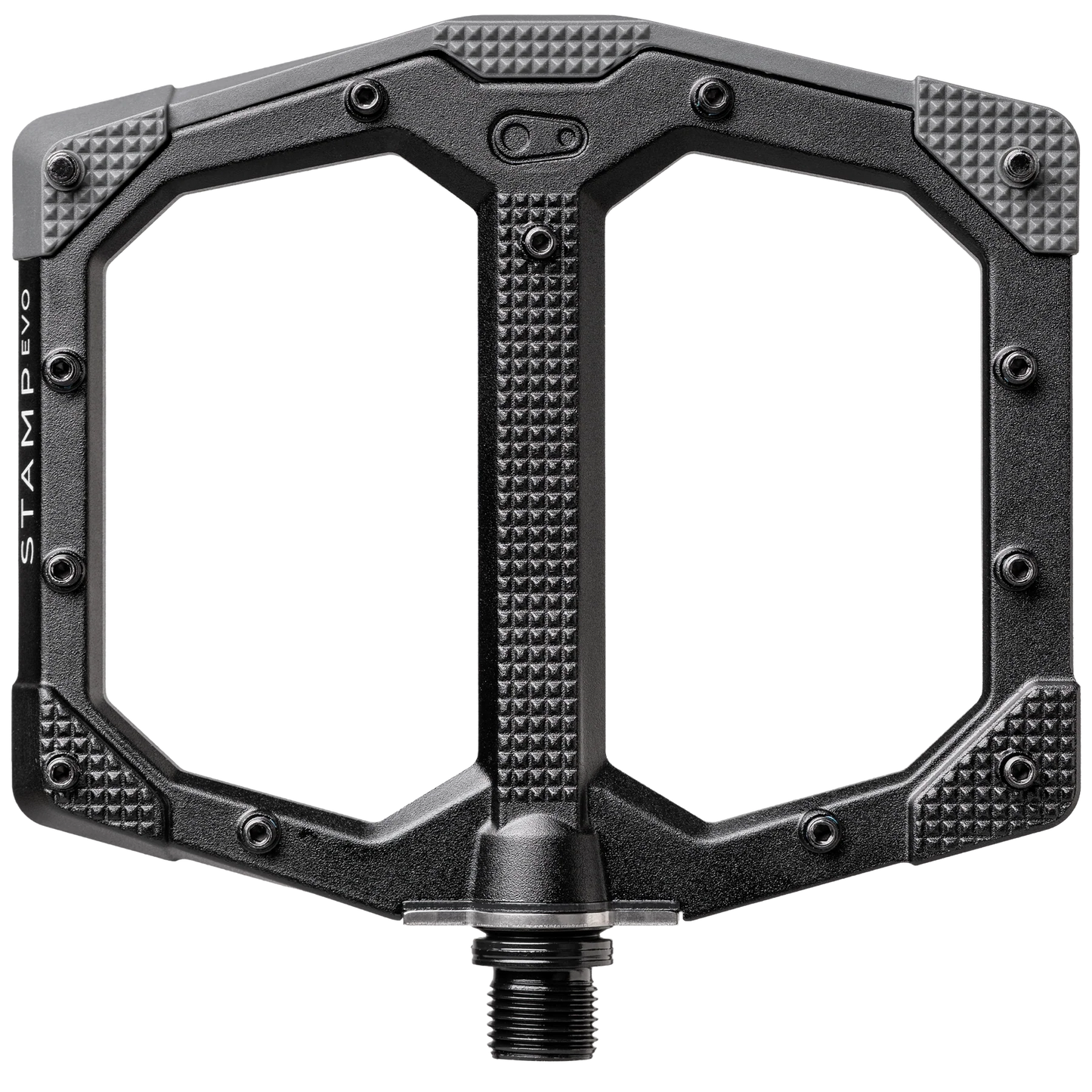

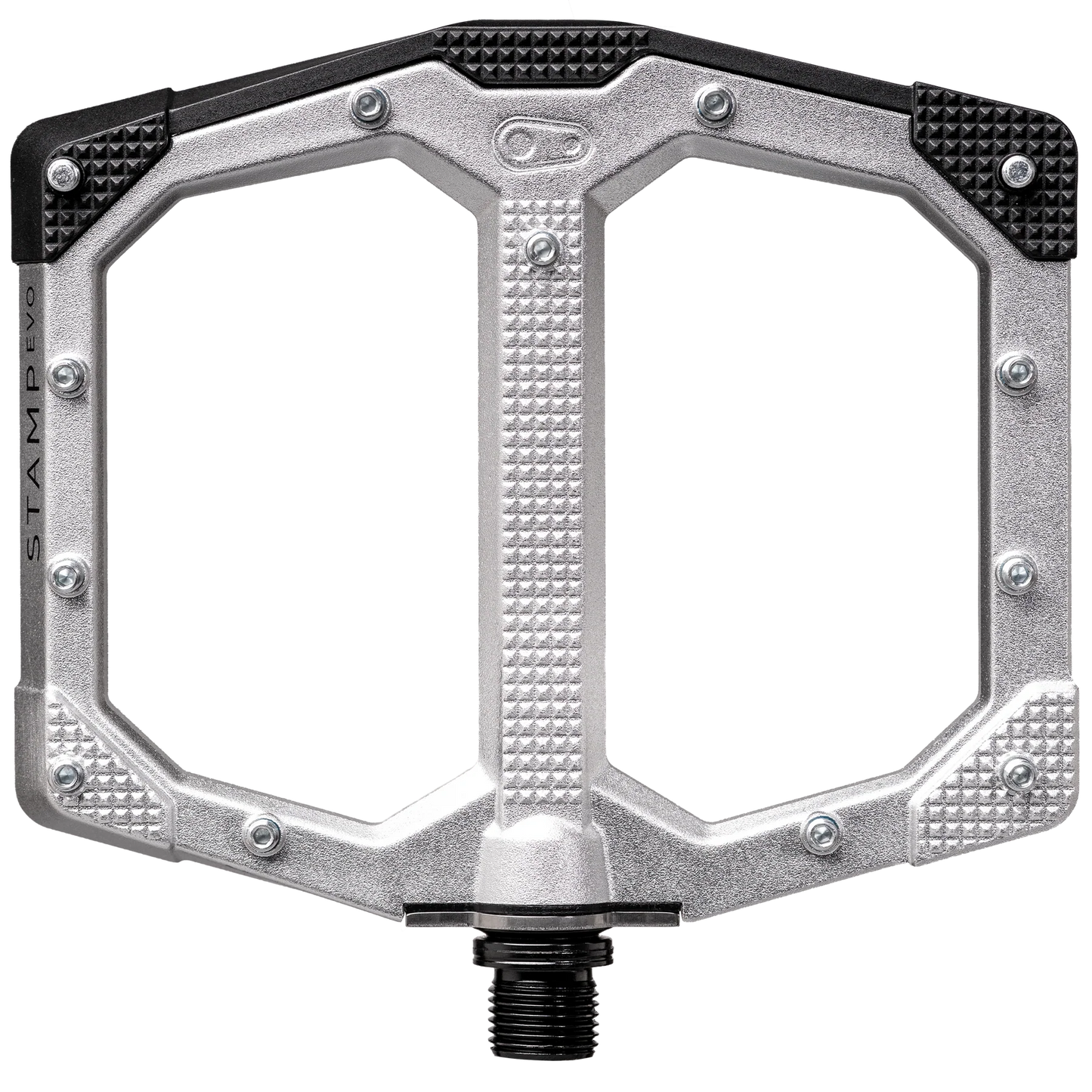

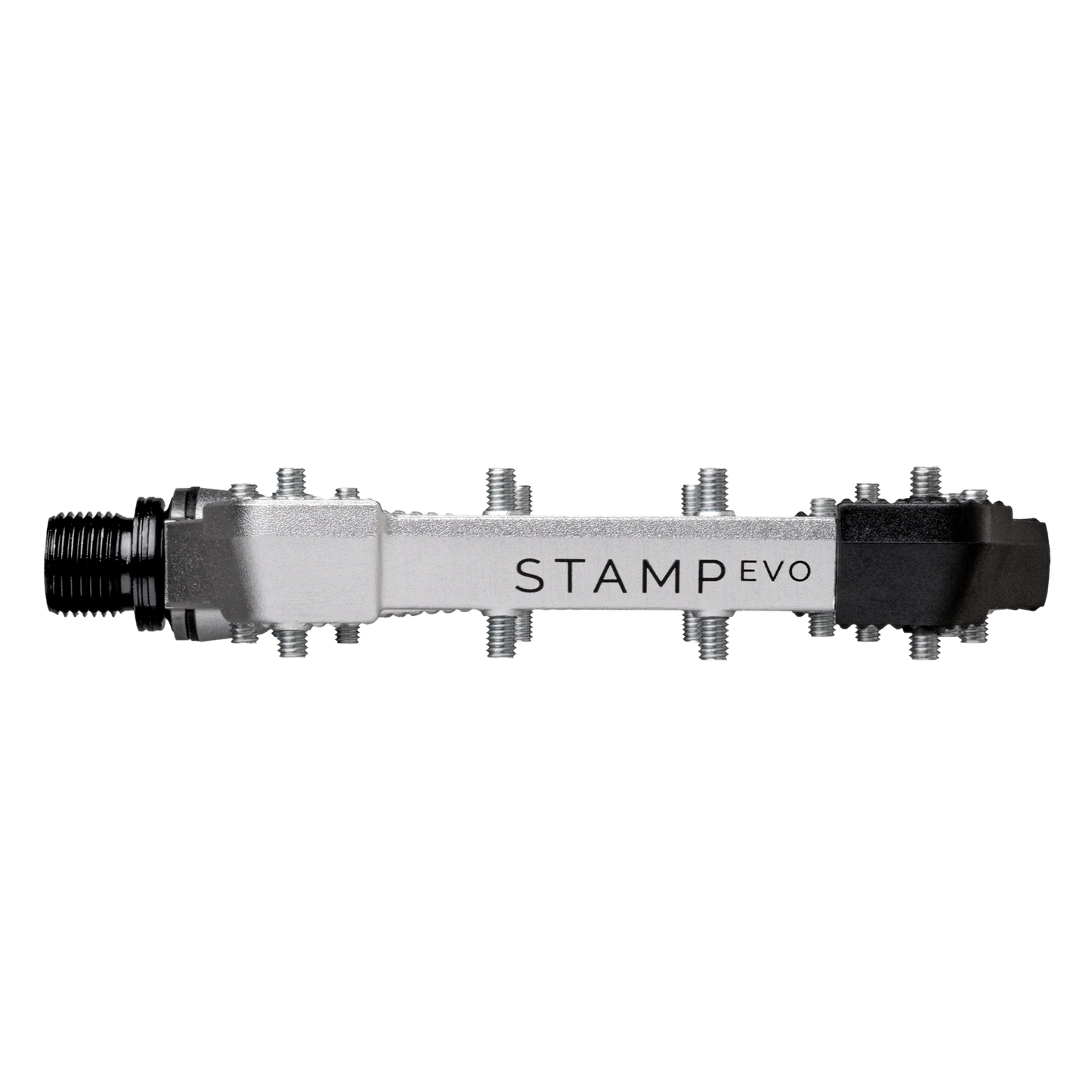

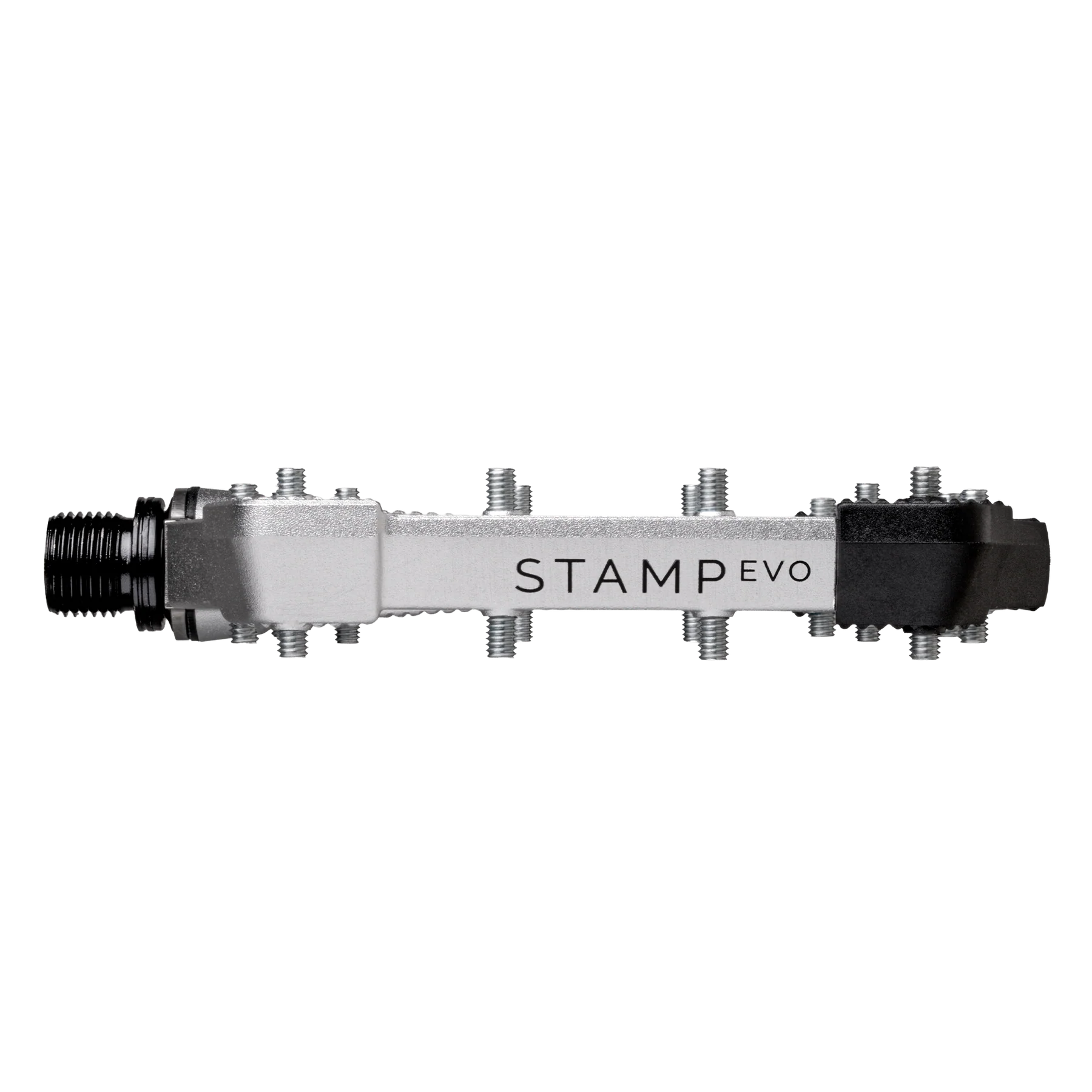

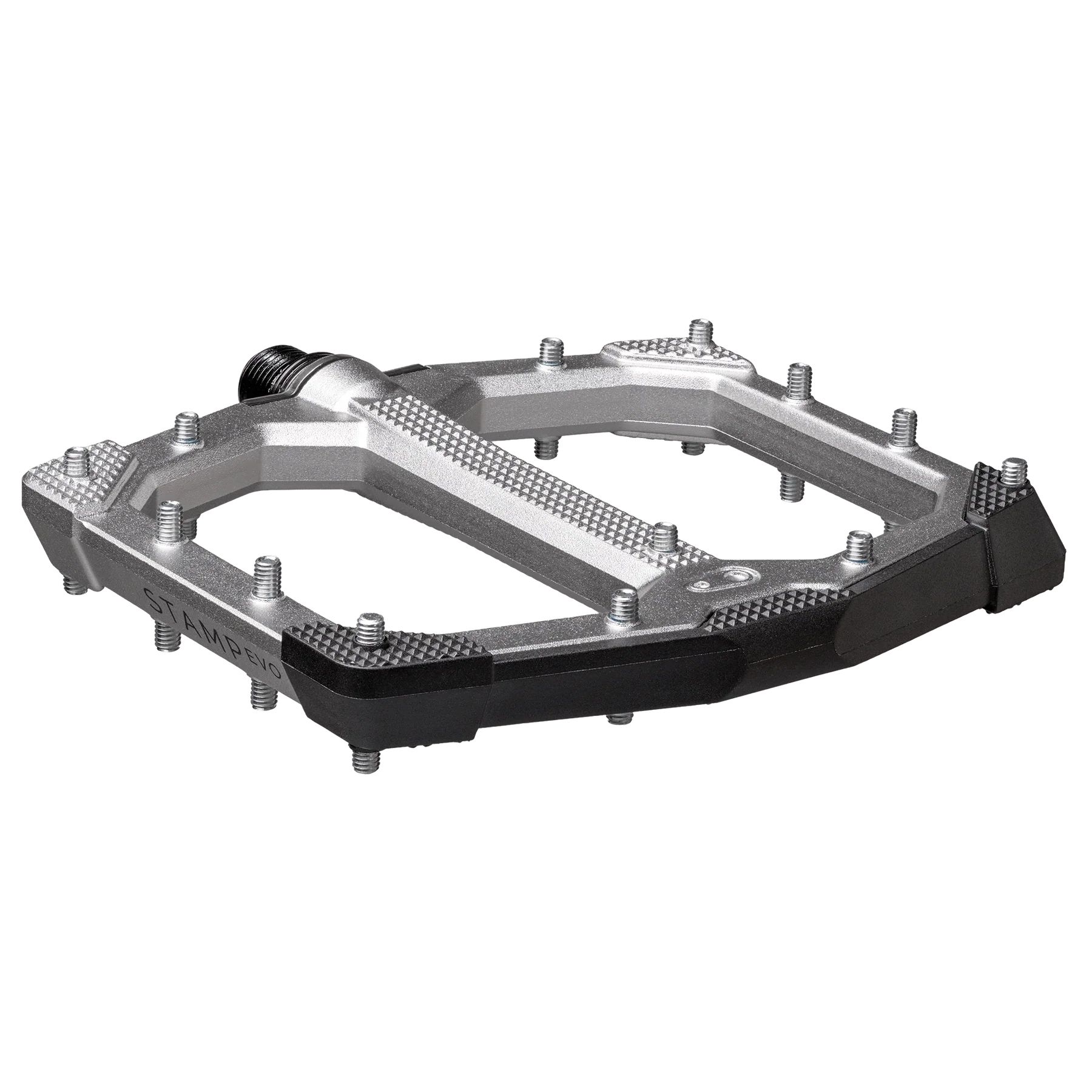

• Color Options
Black and Silver
Small Specifications
• Platform Dimensions
103mm wide x 117mm long
• Recommended Shoe Size
US 3 to 10 / EU 35 to 43.5
• Weight
418g per pair
Large Specifications
• Platform Dimensions
114mm wide x 133mm long
• Recommended Shoe Size
US 10 to 15 / EU 43.5 to 49
• Weight
464g per pair
Choose Small for shoe sizes below US 10 / EU 43.5 and Large for shoe sizes US 10 / EU 43.5 and above.
